DBL-Star enables grinding for not only discs but also drums which can be separated form the vehicles to be grinded.The conditions of the discs and drums are diagnosed accurately.

Grinding of drums specially maximises the efficiency of the grinding operation. Try to grind various discs and drums from various vehicle types by yourself.

Specifications

• Power Requirements: 110-220v 1 Phase, 50/60Hz
• Main Motor: 1HP, 1,1714RPM 15:1 ratio (geared motor)
• Feed Motor: 2 gear AC motor
• Arbor Speed: 0~120RPM (inverter system)
• Drum / Rotor Feed speed: Variable
• Drum Diameter: 150mm~590mm
• Drum Depth: 140mm
• Disk (Rotor) Size: Maximum diameter / 420mm
• Disk (Rotor) Thickness: 50mm
• Arbor Diameter: Standard 30mm | Optional 20mm | Optional 35mm | Optional Small Drum Kit
• Drum / Rotor Maximum Support Weight: 70kg
• Machine Net Weight: 250kg
• Machine Dimension: 800 x 1000 x 1450 (WxDxH)
• Packing Dimension: 1100 x 800 x 1500 (WxDxH)

Features

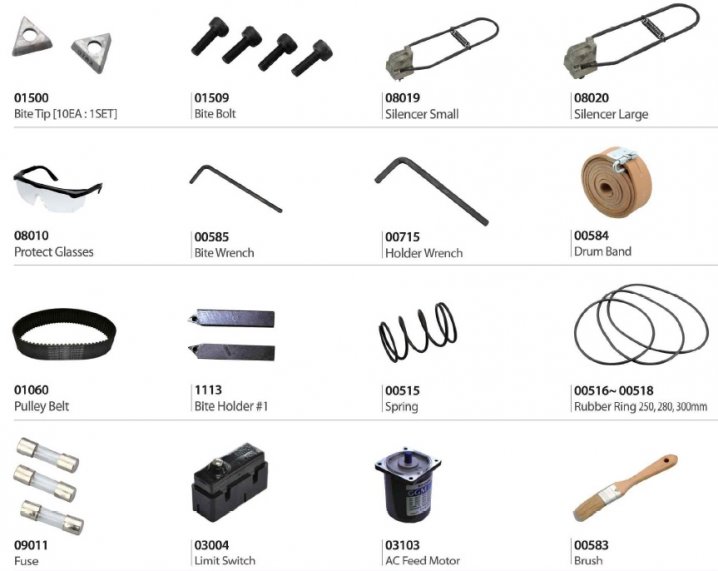

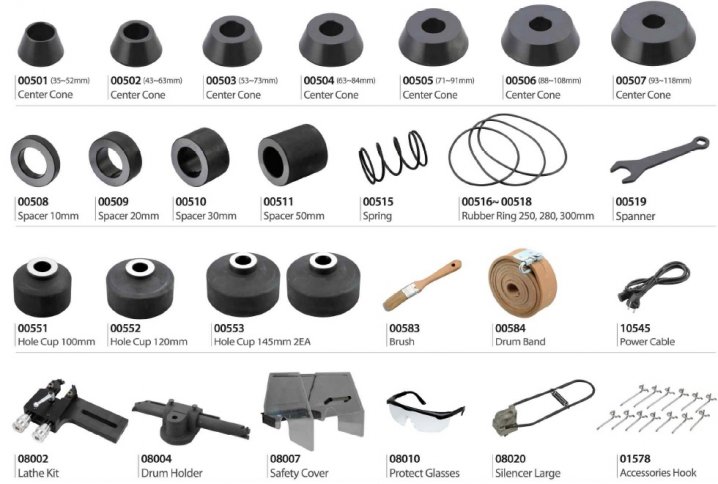

Standard Accessories

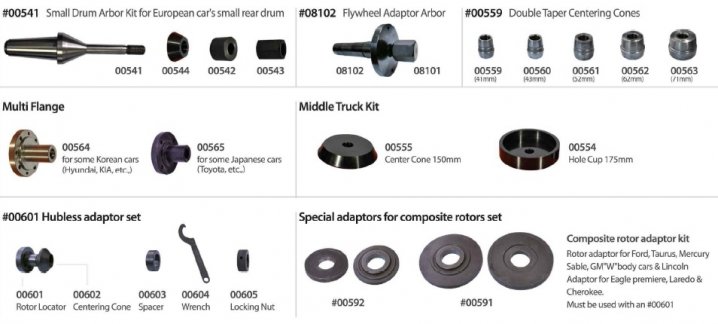

Optional Accessories


Recommended Items

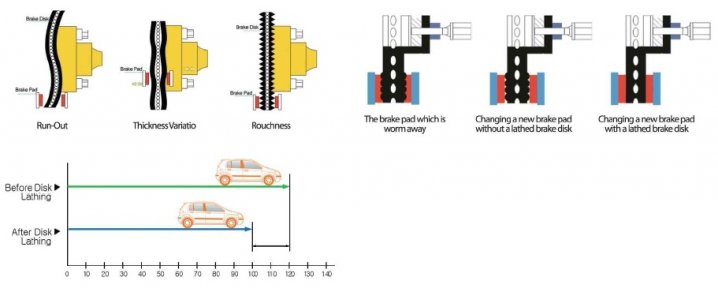

Necessary for Brake Lathing

Due to its nature of the cast-iron product, the brake disc has a tendency to transform by the natural or artificial impacts (repeatedly tempering by air, rain, snow etc)

Such natural or artificial tempering might cause DTV, roughness and run-out of brake disc. In this context, disc lathing has been considered as the most efficient way to solve such braking problems.
