BOSCH V2235 Two Post Lift is a 3.5 tons electronic-hydraulic 2-posts lift.
Features
Ambient Conditions
Operating Data
Dimensions and Weight
Support Arms
Electromagnetic Compatibility (EMC)
The VLH 2235H satisfies the requirements of the EMC directive 2004/108/EG. The VLH 2235H is a class/category A product as defined by EN 61 326. The VLH 2235H may cause high-frequency household interference (radio interference) so that interference suppression may be necessary. In such cases the user may be required to take the appropriate action.
Dimensions
All dimensions are given in mm (millimeters).
All the dimensions specified are typical values. Deviations may be encountered on account of the slope and properties of the floor as well as
production tolerances.
Features
- Structure: Gantry
- Drive way: Chain drive
- Steel rope for synchronization
- CE & JT/T155-2004 certification
- 24V operation box
- Safety device: Emergency stop button, automatic safety locker, automatic arms lock, height limit switch
- Power supply: 380V/50Hz
Ambient Conditions

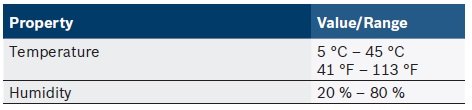

- Use

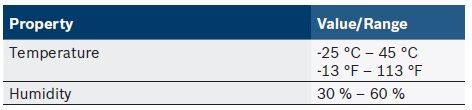

- Storage and Transportation
Performance Data

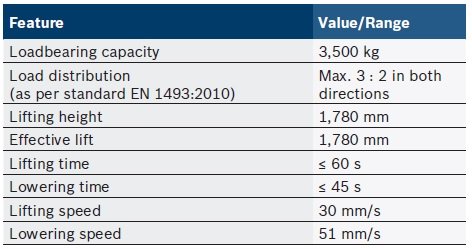

- Lifting Platform
Operating Data

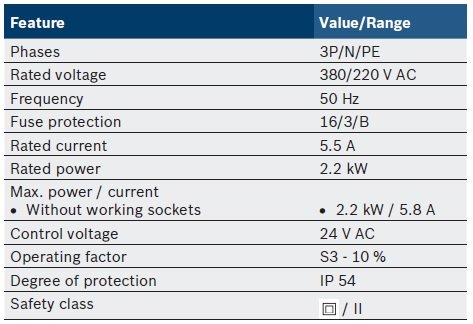

- Electric Power

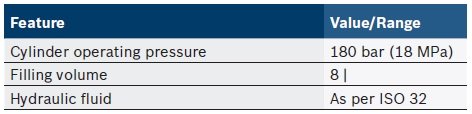

- Hydraulic System
Noise Emissions

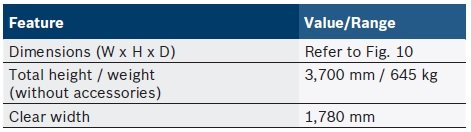

Dimensions and Weight

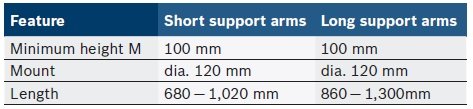

Support Arms

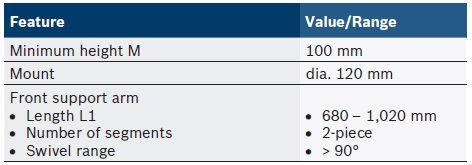

- Short Support Arms

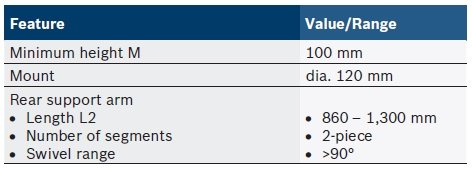

- Long Support Arms
Electromagnetic Compatibility (EMC)
The VLH 2235H satisfies the requirements of the EMC directive 2004/108/EG. The VLH 2235H is a class/category A product as defined by EN 61 326. The VLH 2235H may cause high-frequency household interference (radio interference) so that interference suppression may be necessary. In such cases the user may be required to take the appropriate action.
Dimensions
All dimensions are given in mm (millimeters).
- Lifting Platform - Dimensions of lifting platform (in mm, arrow = direction of travel)

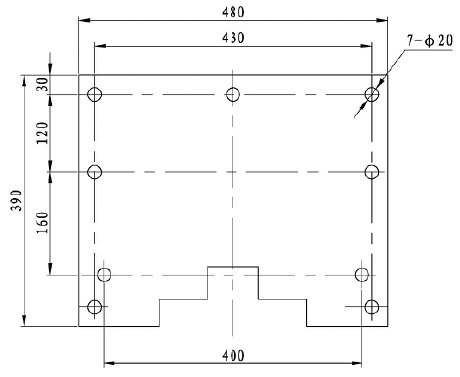

- Base Plates - The design of the right base plate is a mirror image of the left one. Dimensions of left base plate (in mm).
All the dimensions specified are typical values. Deviations may be encountered on account of the slope and properties of the floor as well as
production tolerances.
|
|
||||||||||||||||||||||||||||||||||
