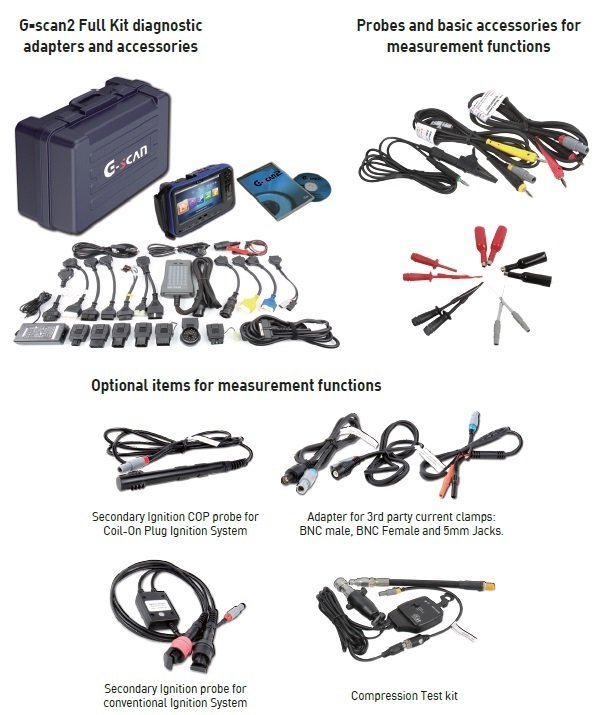

The second generation G-scan with Larger LCD, Wi-Fi connectivity, 4 CH oscilloscope, digital meters and the legacy of unchallenged diagnostic coverage.

Triple CPU High Performance Structure
Designed for fast boot-up and high performance by adopting 3 CPUs dedicated to computing, communication and measurement for each.

Full Compatibility with G-scan
Sharing the same communication platform with G-scan, G-scan2 inherits G-scan's outstanding diagnostic capability and performance.

7" Sunlight Readable LCD
7" high resolution 1024 x 600 LCD ensures greater readability with striking graphical display of diagnostic data and information.

Wireless Connectivity
G-scan2 can access to the internet and utilise smart update, log transfer for quick feedback, and direct printing* functions.

16GB memory
The most widely used storage solution is applied. 16GB SD Card sufficiently accommodates entire software applications and data.

Windows CE 6.0 Operating System
Latest Windows CE 6.0 provides improved smart phone style user interface, better networking and enhanced system security at the same time.

Zero Second Boot-up
For quick boot-up, G-scan2 supports Stand-by mode**. Press the power button, and G-scan2 wakes up and gets ready for use instantly.

* Direct printing If connected to the same network with the PC where the PC Utility program is installed, G-scan2 can print the currently displayed screen or saved screen captures through the PC’s network printer.
** Stand-by mode A short press of the power key while operating puts G-scan2 into the Stand-by mode – hibernating with the minimum power consumption, and G-scan2 wakes up instantly by a short press of the power key or by touching the screen.

Specifications

• CPU : Triple CPU: ARM 11 and 2 X ARM 9
• Operating System : WinCE 6.0
• External Memory : 16GB SD Card
• Display : 7" TFT LCD (1024 X 600)
• Rechargeable Battery : Li-ion Polymer 2100mAh 1 Cell
• Operating Voltage : 7~35DCV | Commerical Vehicle 24V system supported
• Dimension : 230 (W) X 146 (H) X 72 (D) mm 9" X 5.8" X 2.8"
• External port : USB 2.0
• Network : WiFi and Bluetooth on-board
• Input Device : Touch Screen + 13 hard keys

Oscilloscope	Measurement Module	VMI1 (Basic)	VMI2 (Advanced)
	Channels	2/4 Channel + Aux	2/4 Channel + Aux
	Vertical Resolution	10 bit	12 bit
	Sample Speed	Max. 0.5MS / sec	Max. 160MS / sec
	Memory	5MB	5MB + 32GB

Simulation	Digital Meters	Voltage, Resistance, Frequency, Duty Cycle	Voltage, Resistance, Frequency, Duty Cycle, Vacuum, Current
	Voltage	~ 5V	~ 5V
	Duty	~ 999Hz	~ 15KHz
	Actuator Drive	~ 1KHz	~ 2KHz



Diagnostics: Feature

System and DTC Auto Search
“System Search’ option checks all the systems fitted in the car automatically and reports the number of fault codes found and availability of advanced diagnostic functions in each detected system.




Screen Capture and Memo
Simply capture the screen any time and add quick hand written notes on the screen. It can be saved and reloaded for future reference.




Favorite and Recent
Bookmark the frequently used functions in the "Favorite" menu, and call the function as needed without having to navigate all the menu layers each time. The "Recent" menu serves as the shortcut to the functions that need to be executed frequently.




Full Text Description
High resolution LCD screen and the 2-line DTC description display feature enables G-scan2 to show the long-text DTC descriptions in full preventing the use of the acronyms or cutting away the significant parts to fit in the limited text space.




Smart Update
Smart Update system provides more flexibility for software management. The old and new versions for each marque can be downloaded from GIT’s server directly as per personal preferences.




CAN Line Inspection
G-scan2 offers the function that detects the signal transmission of the CAN-Bus lines, and indicates the status of CAN-Bus signals by showing the illuminating lamp symbols on the screen to help instantly identify the hardware defect of CAN-Bus system.




Utility Functions
G-scan2 offers a variety of utility functions like Communication Line Inspection, Unit Converter, Calculator, Special Functions Calculator for user’s convenience.




Flight Record
Live data can be recorded any time during the test by the Flight Record function which can be replayed in numeric or graphical form either on G-scan2 or the PC.




Measurement: Digital Multi-Meter

                    Voltage Meter                                                                  Resistance Meter

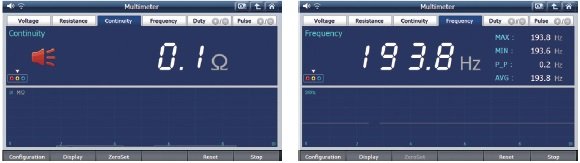

                        Continuity Test                                                             Frequency Meter

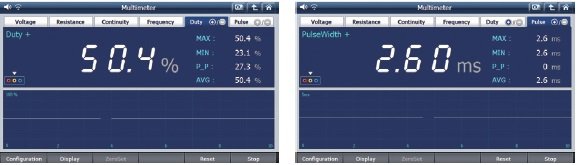

                         Duty Cycle                                                                     Pulse Width



Measurement : Simulation Test
Simulation Test is an active diagnostic function where G-scan2 sends out the electric signals to the vehicle’s sensor or actuator circuit, which enables in-depth diagnosis of input and output sides of the control system by closely observing the response.

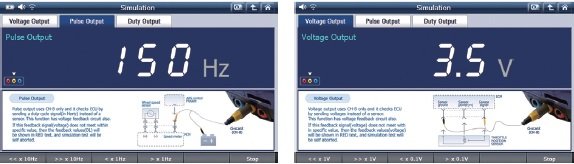

                    Frequency Signal                                                                Voltage Signal



Measurement : Secondary Ignition

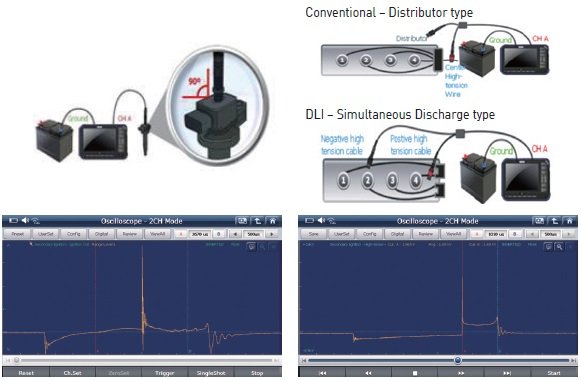

               Coil-On Plug Ignition System                                       Conventional Ignition System



Measurement: Oscilloscope

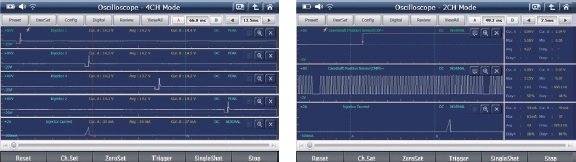

                 4 Channel Mode with aux. input                                 2/4 Channel Mode Single Pattern
