The most impressive experience is true deep bass in the car. To efficiently convert deep bass power, sound pressure subwoofers are essential. Only with these subwoofer chassis are you able to get the full effects of the bass in the really low frequencies. To enable listeners to build powerful subwoofer enclosures for the most intensive sounding music, we developed a high quality Subwoofer Line, produced exclusively in Germany. Rigorous thermal, mechanical load capacity and sensitivity demands are placed on our subwoofers to ensure maximum sound pressure level and high bass sound quality. In doing so, we have made it possible to design subwoofer enclosures with varying maximum volume levels and sound characteristics and which can be expanded or supplemented at any time.

Technology

• Aluminum die-cast basket for resonance-free operation
• Palladium-plated push terminals for high quality cables with large diameters
• Butyl rubber surround for controlled cone motion and minimal distortion
• Aluminum compound cone on polymer cellulose base offers authentic sound reproduction
• Concave dust cap form for optimal frequency response
• High-temperature, 40 – 75 mm voice coil former of black kapton for minimal current loss and maximum excursion
• Duroplastic-backed, low-inductivity, and vented voice coil with temperature-resistant glue
• Vented double spider to prevent compression
• Extremely flexible surface-refined lead wires fixed via glue-points to guarantee resonance- and break-free operation
• Vented double magnet system for better magnet motor cooling and vented dust cap to prevent ...

Read more [+]

The most impressive experience is true deep bass in the car. To efficiently convert deep bass power, sound pressure subwoofers are essential. Only with these subwoofer chassis are you able to get the full effects of the bass in the really low frequencies. To enable listeners to build powerful subwoofer enclosures for the most intensive sounding music, we developed a high quality Subwoofer Line, produced exclusively in Germany. Rigorous thermal, mechanical load capacity and sensitivity demands are placed on our subwoofers to ensure maximum sound pressure level and high bass sound quality. In doing so, we have made it possible to design subwoofer enclosures with varying maximum volume levels and sound characteristics and which can be expanded or supplemented at any time.

Technology

• Aluminum die-cast basket for resonance-free operation
• Palladium-plated push terminals for high quality cables with large diameters
• Butyl rubber surround for controlled cone motion and minimal distortion
• Aluminum compound cone on polymer cellulose base offers authentic sound reproduction
• Concave dust cap form for optimal frequency response
• High-temperature, 40 – 75 mm voice coil former of black kapton for minimal current loss and maximum excursion
• Duroplastic-backed, low-inductivity, and vented voice coil with temperature-resistant glue
• Vented double spider to prevent compression
• Extremely flexible surface-refined lead wires fixed via glue-points to guarantee resonance- and break-free operation
• Vented double magnet system for better magnet motor cooling and vented dust cap to prevent thermal compression
• Symmetrical pole piece for optimized magnet field symmetry
• Short cut ring made of copper to reduce distortions
• Optimized ferror-ceramics double magnet for high sensitivity with additional cooling via 8 mm chromium-plated backplate
• Suitable for enclosures of between 16 and 33 liters
• Application : bandpass, ported and sealed

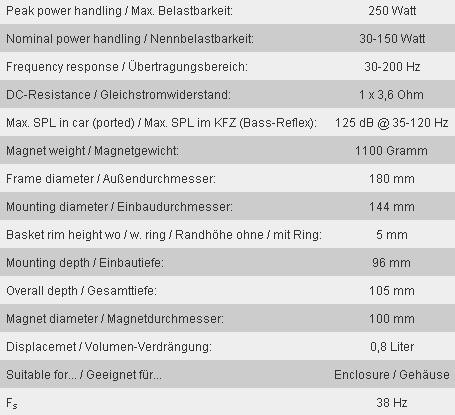

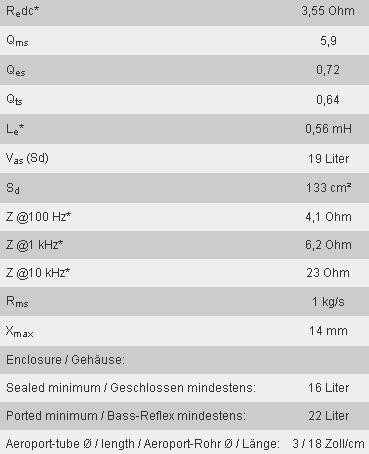

Specifications
