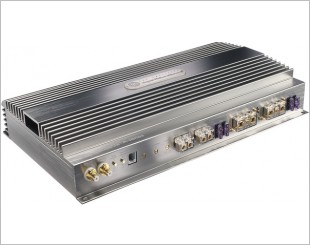

A 1 ohm stable monoblock, perfect for SPL.
Extremely powerful power supply.
The output power in 4 ohms is 500 thrue RMS watts.
A cooling fan is built in but the amplifier also provides a built-in fan control for external cooling fan.
Features
- Built-in, variable 50-125 Hz low pass filter for subwoofers plus a 25 Hz subsonic filter with an 18 dB/octave slope.
- Dual power terminals where you can connect dual power feeds or a DLS Power Cap.
- Extra features are a phase control variable 0-180 degrees continuously.
- A remote sub level control is included. Adjust the sub level and phase from the front seat!
- RMS output power @ 13,8V DC feed
A6 is our most sold mono amplifier with high stability and a power supply that handles any load down to 1 ohm.
Specifications
- Number of channels: 1
- Amplifier class: AB
- Output power in 1 ohm: 1200 W RMS
- Output power in 2 ohm: 870 W RMS
- Output power in 4 ohm: 500 W RMS
- Damping factor: > 200
- S/N ratio, A-weighted: > 100 dB
- Frequency range: 10 Hz - 125 Hz
- Input sensitivity: 0,2 - 7 V
- Input impedance, high level: N/A
- Input impedance: > 10 kohm
- High pass filter: Subsonic: 25 Hz
- Low pass filter: 50-125 Hz
- External cooling fan terminal: Yes
- Dual DC inputs: Yes
- Low level output: No
- Phase control for subwoofers: 0- 180 degrees cont. variable
- High level input with auto start: No
- Remote bass level control: Yes
- Remote phase shift control: Yes
- Integrated fan: Yes
- Power consumption (idle): 0,6 A
- Power consumption (max): 140 A
- Rec. power cable: Minimum 2AWG / 33 mm2
- Fuses: 4 x 35 A
- Dimension (W x D x H): 410 x 240 x 73 mm ...
Read more [+]A 1 ohm stable monoblock, perfect for SPL.
Extremely powerful power supply.
The output power in 4 ohms is 500 thrue RMS watts.
A cooling fan is built in but the amplifier also provides a built-in fan control for external cooling fan.
Features
- Built-in, variable 50-125 Hz low pass filter for subwoofers plus a 25 Hz subsonic filter with an 18 dB/octave slope.
- Dual power terminals where you can connect dual power feeds or a DLS Power Cap.
- Extra features are a phase control variable 0-180 degrees continuously.
- A remote sub level control is included. Adjust the sub level and phase from the front seat!
- RMS output power @ 13,8V DC feed
A6 is our most sold mono amplifier with high stability and a power supply that handles any load down to 1 ohm.
Specifications
- Number of channels: 1
- Amplifier class: AB
- Output power in 1 ohm: 1200 W RMS
- Output power in 2 ohm: 870 W RMS
- Output power in 4 ohm: 500 W RMS
- Damping factor: > 200
- S/N ratio, A-weighted: > 100 dB
- Frequency range: 10 Hz - 125 Hz
- Input sensitivity: 0,2 - 7 V
- Input impedance, high level: N/A
- Input impedance: > 10 kohm
- High pass filter: Subsonic: 25 Hz
- Low pass filter: 50-125 Hz
- External cooling fan terminal: Yes
- Dual DC inputs: Yes
- Low level output: No
- Phase control for subwoofers: 0- 180 degrees cont. variable
- High level input with auto start: No
- Remote bass level control: Yes
- Remote phase shift control: Yes
- Integrated fan: Yes
- Power consumption (idle): 0,6 A
- Power consumption (max): 140 A
- Rec. power cable: Minimum 2AWG / 33 mm2
- Fuses: 4 x 35 A
- Dimension (W x D x H): 410 x 240 x 73 mm (16,15 x 9,45 x 2,87 inch)
- Weight: 6,2 kg ( 13,67 lb)
Read less [-]
