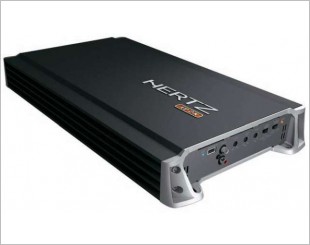

The EP 2 X is a very powerful stereo amplifier delivering 2 x 350W (RMS) into a 2 Ohm load. It can also be bridged into mono delivering up to 700W (RMS) to drive a subwoofer. Pre-amplified inputs as well as hi-level inputs allows the EP 2 X to be interfaced with any head units, including factory OEM sources, making it an ideal choice for system upgrades.
The EP 2 X boasts extreme reliability, thanks to its dual layer FR-4 PCB with thick 70µm copper traces, along with robust copper bars for high current transfer paths.
The Bass Boost system, adjustable within a range of 0 to 12 dB, aids in low frequency enhancement and performance. The advanced electronics and the optimized cooling system allow the EP 2 X to provide high power, even under difficult conditions.
Features
- Output Power (RMS):
- 2 Ch 350 Wx 2 (2Ω)
- 1 Ch 700 Wx 1 (4Ω)
- Distorsion - THD ( 1kHz @ 4 Ω): 0.05%
- Bandwidth (-3 dB): 7 / 60k Hz
- S/N Ratio (A weighted@ 1 V): 100 dB
- Damping factor (1kHz @ 4 Ω): 130
- Pre-In sensitivity: 0.3 / 5V
- Pre-In impedance: 15kΩ
- Speaker-In sensitivity: 1.4 / 24V
- Speaker-In impedance: 470Ω
- Remote In: 6 ÷ 15 VDC - 1 mA
- Remote Out : 12 VDC - 15 mA
- Full / Hi-Pass / Lo-Pass (Stereo/Mix) 40 ÷ 400 Hz@12 dB/Oct.
- Bass Boost 0 ÷ + 12 dB @ 45 Hz
- ARTTM: Automatic Remote Turn-On/Off
- with Speaker-In
- Fuse: 3 x 30 A
- Max size (mm/inches): 240 x 450 x 54 - 9" 15/32 x 17" 23/32 x 2" 5/32
