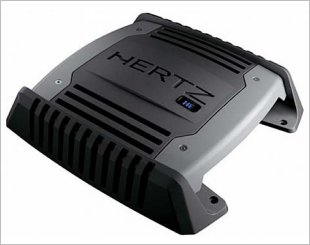

The HE 2 is a stereo 400W (Max) amplifier that can be bridged in mono. It is the ideal choice to upgrade your factory system, pre-amplified inputs as well as hi-level inputs offer the possibility for the HE 2 to be interfaced with any head units, including factory OEM systems. Real 12dB/Oct. continuously adjustable (40 to 400Hz) active crossover with Lo-Pass/Hi-Pass or Full Range settings ensures the best acoustic performance of your car audio system. The advanced electronics and the optimized cooling system allow the HE 2 to provide high power, even under difficult conditions.

Specifications

• Authorised Dealer for Hertz
• Output Power (RMS):
• 70W x 2 (4 Ohm)
• 100W x 2 (2 Ohm)
• 200W x 1 ( 4 Ohm)
• Bandwith (-3 dB): 7 - 45k Hz
• S/N Ratio (A weighted @1V): 104dB
• Damping Factor (1 kHz @ 4 Ohm): 150
• Pre-In sensitivity: 0.3-5Volts
• Pre-In impedence: 15 kohms
• Speaker-In sensitivity: 1.4-24Volts
• S/N Ratio (A weighted @1V): 82dBA
• Power supply voltage: 11 - 15Volts
• Idling current: 0.7A
• Idling current when off: 0.02 mA
• Consumption @1, 14.4VDC: 12A
• Dimensions (mm): 266 x 289 x 63.5
