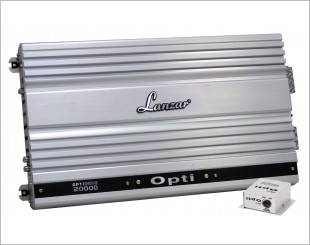

Optidrive 2000 Watt Half Ohm Stable Mono Block Digital Competition Class Amplifier.

Specifications

• 700 Watts RMS Power @ 4 Ohms
• 1100 Watts RMS Power @ 2 Ohms
• 1600 Watts RMS Power @ 1.3 Ohms
• 2000 Watts Max Power @ 0.5 Ohms
• 4000 Watts Bridge Max Power @ 2 Ohms
• Mono Block Subwoofer Amplifier
• 0.5 Ohm Stable
• MOSFET Power Supply
• PWM (Pulse-Width-Modulated) System
• Double Sided Epoxy PCB Circuit Board
• Gold Plated RCA Inputs
• Custom Terminal Block for Speaker Connections
• Thermal, Overload Short Protection
• Remote Bass Control
• Soft Turn On/Off
• THD @ 1Watt/4 Ohm: 0.1%
• S/N Ratio: 90dB
• Frequency Response: 15Hz - 150Hz (+/-3dB)
• Damping Factor @ 20Hz/4 Ohms: 400
• Low Pass Filter: 50Hz-150Hz, 24dB/Octave
• Variable Subsonic Filter: 15Hz-40Hz, 24dB/Octave
• Variable Bass Boost: 0 to 18dB
• Variable Phase Control: 0 to 180
• Input Sensitivity: 200mV ~ 8V
• Input Impedance: 10k Ohm
• Line Output Impedance: 100 Ohm
• Fuse Rating: 30A x 6
• Dimensions: 10.08" (W) x 2.12" (H) x 19.1" (L)
