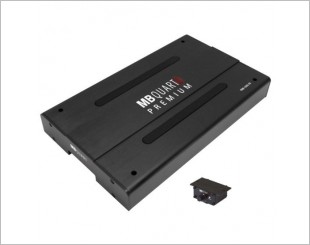

The PAB 1200.1D Premium Series mono-block subwoofer amplifier features an audiophile-grade Super D-Class™ circuit design for outstanding efficiency, low-impedance stability and low-distortion fidelity. Super D-Class™ designs have much lower demands for Current/Amperes than other brand amps of the same power.
The balanced line driver input accepts audio signals up to 18-volts. Its advantage is in maintaining both SPL and musical transient when using multiple amplifiers. This high-threshold input gives the PAB 1200.1D subwoofer amplifier maximum bass impact.
Features
- Premium Series Class D Monoblock Car Amplifier
- RMS Power Ratings: 4 ohms: 600 watts x 1 chan/2 ohms: 800 watts x 1 chan/1 ohm: 1200 watts x 1 chan
- Max power output: 1200 watts x 1 chan.
- PWM MOSFET power supply
- Wired remote bass level control included
- LED power and protection indicators
- Tuned Bass EQ (0-9 dB bass boost)
- Phase shift allows 0 degrees to 180 degrees
- Soft-start
- Preamp RCA outputs
- DC, short, thermal, and overload protection circuitry
- Wire concealing detachable end panels
- Focused mass aluminium heat sink
Gold-plated RCA level inputs
- Gold-plated screw terminals
- Variable low-pass filter (35-250 Hz, 24 dB/octave)
- Subsonic Filter (10-50 Hz)
- Frequency response: 15-250 Hz
- Dimensions: 17"L x 10.4"W x 2.25"H
- 1/0-gauge power and ground leads recommended
Specifications
- RMS Power @ 4 ohms: 600 watts x 1 channel
- RMS Power @ 2 ohms: 600 watts x 1 channel
- RMS Power @ 1 ohm: 1200 watts x 1 channel
- Bridged RMS Power: Not Bridgeable
- Peak Power Output: 1200 watts x 1 channel
- Amplifier Cl...
Read more [+]The PAB 1200.1D Premium Series mono-block subwoofer amplifier features an audiophile-grade Super D-Class™ circuit design for outstanding efficiency, low-impedance stability and low-distortion fidelity. Super D-Class™ designs have much lower demands for Current/Amperes than other brand amps of the same power.
The balanced line driver input accepts audio signals up to 18-volts. Its advantage is in maintaining both SPL and musical transient when using multiple amplifiers. This high-threshold input gives the PAB 1200.1D subwoofer amplifier maximum bass impact.
Features
- Premium Series Class D Monoblock Car Amplifier
- RMS Power Ratings: 4 ohms: 600 watts x 1 chan/2 ohms: 800 watts x 1 chan/1 ohm: 1200 watts x 1 chan
- Max power output: 1200 watts x 1 chan.
- PWM MOSFET power supply
- Wired remote bass level control included
- LED power and protection indicators
- Tuned Bass EQ (0-9 dB bass boost)
- Phase shift allows 0 degrees to 180 degrees
- Soft-start
- Preamp RCA outputs
- DC, short, thermal, and overload protection circuitry
- Wire concealing detachable end panels
- Focused mass aluminium heat sink
Gold-plated RCA level inputs
- Gold-plated screw terminals
- Variable low-pass filter (35-250 Hz, 24 dB/octave)
- Subsonic Filter (10-50 Hz)
- Frequency response: 15-250 Hz
- Dimensions: 17"L x 10.4"W x 2.25"H
- 1/0-gauge power and ground leads recommended
Specifications
- RMS Power @ 4 ohms: 600 watts x 1 channel
- RMS Power @ 2 ohms: 600 watts x 1 channel
- RMS Power @ 1 ohm: 1200 watts x 1 channel
- Bridged RMS Power: Not Bridgeable
- Peak Power Output: 1200 watts x 1 channel
- Amplifier Class: D
- Number of Channels: 1 – Mono
- Total Peak Power Output: 1200 watts
- Total RMS Power Output: 1200 watts
- Maximum Input Gauge Size: 1/0 AWG
- Minimum Impedance Unbridged: 1 ohms
- Minimum Impedance Bridged: Not Bridgeable
- THD at Rated RMS Power: 0.1%
- Speaker Level Inputs: No
- Preamp Outputs: 1 pair
- Built-in Crossover: Low-pass (LP)
- High-Pass Crossover Frequency: N/A
- Low-Pass Crossover Frequency: 35 – 250 Hz
- Subsonic Filter: 10 – 50 Hz
- Signal-to-Noise Ratio: 95 dB
- Channel Separation: N/A
- Bass Boost: 0 – 9 dB
- Bass/ Gain Remote: Yes
- Fan Cooled: No
- Fuse Rating: 40A x 2
- CEA-2006 Compliant: No
Read less [-]
