Recently redesigned, these new PowerBass Xtreme XTA amplifiers were developed to work best with PowerBass speakers and woofers using the highest quality parts while at the same time providing incredible value.
The XTA amplifier starts with a low profile, high density aluminum heatsink with a massive top plate for maximum heat dissipation. All new 45-degree brass terminals were tooled for speakers and power to accept large gauge wires so these amplifiers can produce the maximum output to your speakers. Low level RCA inputs AND outputs are on each model so you can send a full range signal on to additional amplifiers for a professional and efficient system design.
Inside the amplifiers, a PWM (Pulse Width Modulated) switching power supply and MOSFET transistors are used for increased output voltage. Using top quality components more headroom, better transients and higher damping can be achieved which all adds up to plenty of clean RMS power.
To make sure that the proper signal gets to your speakers, an adjustable 12 dB/octave high pass crossover with a range of 50 - 250Hz as well as a low pass crossover with a range of 40 - 400Hz are all built-in. This electronic crossover allows for complete flexibility and makes multiple amplifier applications possible.
To get that low bass bump, we equipped each XTA amplifier with a Bass EQ circuit offering up to 18dB of variable boost at 45Hz.
To top it all off, stunning blue edge-lit PowerBass logo is added in the centre of the amplifier that illuminates when the unit is turned on.
Features
- 1-ohm Stable Class D Circuitry
- Dual-link C...
Read more [+]Recently redesigned, these new PowerBass Xtreme XTA amplifiers were developed to work best with PowerBass speakers and woofers using the highest quality parts while at the same time providing incredible value.
The XTA amplifier starts with a low profile, high density aluminum heatsink with a massive top plate for maximum heat dissipation. All new 45-degree brass terminals were tooled for speakers and power to accept large gauge wires so these amplifiers can produce the maximum output to your speakers. Low level RCA inputs AND outputs are on each model so you can send a full range signal on to additional amplifiers for a professional and efficient system design.
Inside the amplifiers, a PWM (Pulse Width Modulated) switching power supply and MOSFET transistors are used for increased output voltage. Using top quality components more headroom, better transients and higher damping can be achieved which all adds up to plenty of clean RMS power.
To make sure that the proper signal gets to your speakers, an adjustable 12 dB/octave high pass crossover with a range of 50 - 250Hz as well as a low pass crossover with a range of 40 - 400Hz are all built-in. This electronic crossover allows for complete flexibility and makes multiple amplifier applications possible.
To get that low bass bump, we equipped each XTA amplifier with a Bass EQ circuit offering up to 18dB of variable boost at 45Hz.
To top it all off, stunning blue edge-lit PowerBass logo is added in the centre of the amplifier that illuminates when the unit is turned on.

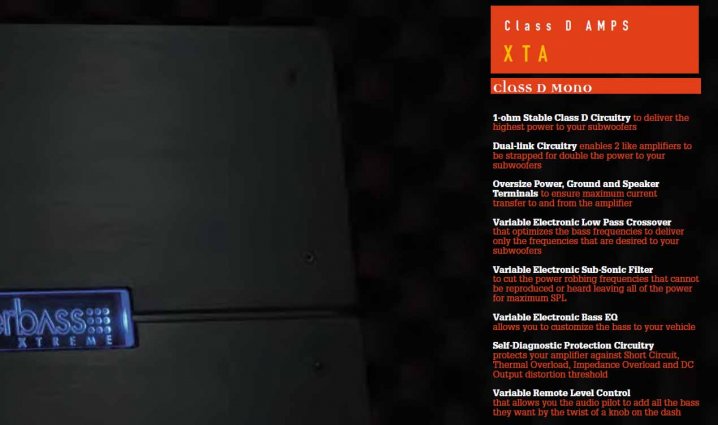

Features
- 1-ohm Stable Class D Circuitry
- Dual-link Circuitry
- Oversize Power, Ground and Speaker Terminals
- Variable Electronic Low Pass Crossovers
- Variable Electronic Sub-Sonic Filter
- Variable Electronic Bass EQ
- Self-Diagnostic Protection Circuitry
- Variable Remote Gain Control
SpecificationsChannels (mono):
1
Output Power (14.4 V) @ 1 ohm:
2250 watts
Output Power (14.4 V) @ 2 ohm:
1125 watts
Output Power (14.4 V) @ 4 ohm:
565 watts
Strapped Output Power @ 2ohms:
4500 watts
Frequency Response:
18 Hz - 250 Hz
Total Harmonic Distortion:
S/N Ratio:
>94 dB
Input Sensitivity:
0.2 V - 6.0 V
Dimensions (in Inches):
18.5" x 10.75" x 2.5"
Read less [-]
