Our new L Series Subwoofers have been engineered to deliver the earth-shaking SPL and smooth bass that SQ purists require.
Each L model features a redesigned Injection Molded PP Cone. This cone combines deep bass and distortion free sound. Next we designed a single piece CNC machined back plate with extended pole piece to insure a strong symmetric magnetic field for increased operating efficiency. A sandblast finish was applied for good looks and durability.
To make the bass super tight, our engineers designed Large Roll NBR (Nitrile) Rubber surrounds which allows free movement of the cone for maximum SPL, a large motor structure for high power handling, 2.5” black Kapton voice coil former for optimum performance and cooling for maximum heat dissipation.

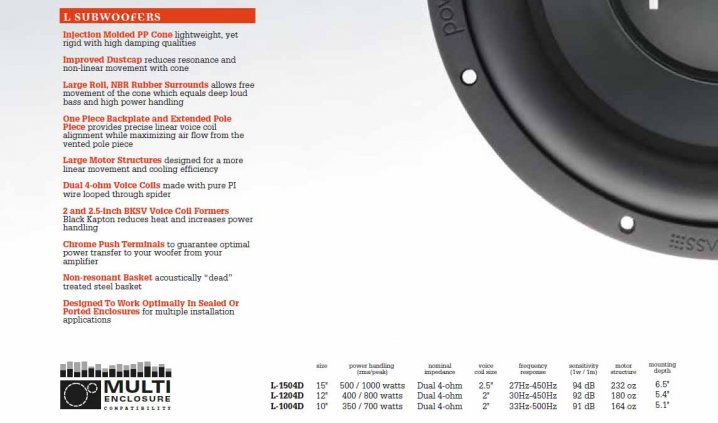

Features
- Injection Molded PP Cone
- Large Roll, NBR Rubber Surrounds
- One Piece Plated Backplate and Extended Pole Piece
- Large Motor Structures for High Power Handling
- Dual 4-ohm Voice Coils
- 2.5” Vented KSV Voice Coil Former
- Chrome Push Terminals
- Non-resonant Basket
- Designed To Work Optimally In Sealed Or Ported Enclosures
Specifications
- Size: 15in
- Power Handling
- (RMS/Peak): 500/1000 watts
- Nominal Impedance: Dual 4-ohm
- Voice Coil Size: 2.5 in
- Frequency Response: 27Hz - 450Hz
- Sensitivity: 94dB
- Motor Structure: 232 oz
- Mounting Depth: 6.5 in
T/S Parameters
- VC Impedance: 4 ohm + 4 ohm
- Test Impedance: 1.6 ohms
- Fs: 27 Hz
- SD: 780 sqCM
- Vas: 111 Ltr
- Cms: 137.4 µM/N
- Mms: 263.5 g
- BL™: 11.3
- Qms: 5.14
- Qes: 0.54
- Qts: 0.47
- No: 0.36%
- Spl: 94 dB
- Xmax: 12 mm
...
