Thinkware Dash Cam F550 features a 1080p FULL HD & HD 2CH, 30fps, Dual Save with an Advanced Video Clear Technology and a built-in GPS.
Features & Specs
Thinkware Dash Cam F550 features a 1080p FULL HD & HD 2CH, 30fps, Dual Save with an Advanced Video Clear Technology and a built-in GPS.
High Definition Video Quality
With a 1920*1080p Full HD camera, the F550 is able to record pristine-quality video that captures the crucial details of any incidents you may encounter while driving.
Recording at 30fps without dropping a single frame, you can rely on the F550 to capture every moment of your commute – whether it be an accident or a hit-and-run.
Advanced Video Clearing Technology for Auto Image Correction
With the Sony Exmor CMOS image sensor, the Advanced Video Clearing Technology automatically adjusts the level of exposure, contrast, and image noise to improve video quality in bad weather conditions or at night.
Intelligent Auto Exposure
The F550 is equipped with an automatic exposure control which always ensures ideal exposure and superb image quality in any lighting conditions.
Smart Focusing System
A combination of a high performance camera and the Sony Exmor CMOS image sensor makes sure that the recorded video footages are always accurately focused for maximum clarity even in rain or foggy conditions.
Noise Reduction System
The Advanced Noise Reduction System improves video quality by removing unwanted noise that occurs when driving in a tunnel or at night.
ACCE (Adaptive Colour & Contrast Enhancement)
ACCE automatically adapts to the surrounding environment and adjusts the image color and contrast level to enhance video quality.
140Ëš Wide Angle View
The F550 has a 140Ëš wide viewing angle for maximum visibility,...
Thinkware Dash Cam F550 features a 1080p FULL HD & HD 2CH, 30fps, Dual Save with an Advanced Video Clear Technology and a built-in GPS.
High Definition Video Quality
With a 1920*1080p Full HD camera, the F550 is able to record pristine-quality video that captures the crucial details of any incidents you may encounter while driving.
Recording at 30fps without dropping a single frame, you can rely on the F550 to capture every moment of your commute – whether it be an accident or a hit-and-run.
Advanced Video Clearing Technology for Auto Image Correction
With the Sony Exmor CMOS image sensor, the Advanced Video Clearing Technology automatically adjusts the level of exposure, contrast, and image noise to improve video quality in bad weather conditions or at night.
Intelligent Auto Exposure
The F550 is equipped with an automatic exposure control which always ensures ideal exposure and superb image quality in any lighting conditions.
Smart Focusing System
A combination of a high performance camera and the Sony Exmor CMOS image sensor makes sure that the recorded video footages are always accurately focused for maximum clarity even in rain or foggy conditions.
Noise Reduction System
The Advanced Noise Reduction System improves video quality by removing unwanted noise that occurs when driving in a tunnel or at night.
ACCE (Adaptive Colour & Contrast Enhancement)
ACCE automatically adapts to the surrounding environment and adjusts the image color and contrast level to enhance video quality.
140Ëš Wide Angle View
The F550 has a 140Ëš wide viewing angle for maximum visibility, capturing a wider view of the roads efficiently.
Fast Processor
A high performance Cortex A8 core CPU ensures a stable and uninterrupted performance while the F550 performs various tasks. Developed as a high-end processor, this A8 processor has been extensively tested and proven in many applications, such as tablet computers and smartphones.
Access Driving Information with GPS
With a built-in GPS antenna, the F550 can embed time, speed, and location data into recorded footages to provide additional information surrounding an event – which could be crucial for insurance reports. The user can also review their driving history with the Google Maps integrated with the PC / Mac Viewer.
The feature is only available for models equipped with a built-in GPS antenna, or with an external GPS antenna as an optional accessory.
Thinkware Proprietary Technology: Dual Save
The Dual Save technology is specially designed to save recorded footages in both the Micro SD card and the built-in internal memory in incident recording, safeguarding against the loss of data in the aftermath of a severe collision. In the event that the memory card is damaged, the Dual Save Technology guarantees a backup copy of the video in the internal memory.
* The Dual Save Technology is activated when a certain level of impact is detected (Impact sensitivity is adjustable using the PC / Mac Viewer).
Accelerometer G-Sensor
The Active Impact Monitoring System utilises a 3-axis G-Sensor to continuously monitor any impact to the vehicle, and triggers the incident recording mode whenever an impact is registered.
Easy-to-Use, Highly Functional Viewer
With the Thinkware PC Viewer, you can access the recorded videos with time, speed, and location data on your PC or Mac computer. You may also use the application to configure the device, as well as accessing firmware upgrades.
Various Autonomous Recording Modes
The F550 supports various recording modes that you can use according to your needs: Continuous Recording, Incident Recording, Motion Detection Recording, and Manual Recording.
Continuous Recording Mode - This mode is activated automatically when you start the engine. Recorded videos are saved in one-minute segments with an auto-looping mechanism.
Incident Recording Mode - The Active Impact Monitoring System will automatically store the ten seconds prior and after a collision registered by the 3-axis G-Sensor.
Parking Surveillance Mode - The F550 can support a parking surveillance mode that monitors your vehicle when the ignition is off. A combination of motion detection and impact monitoring is used to protect your car from hit-and-run incidents. * This feature is only available when installed using the optional hardwiring cable. Professional installation is highly recommended.
Manual Recording - Similar to a video camera, you can use the Manual Recording Mode to capture events that occurs in front of you even if your vehicle is not involved. You can also use this feature to capture special moments, such as a falling meteor or a herd of bison crossing the road.
Recording Duration

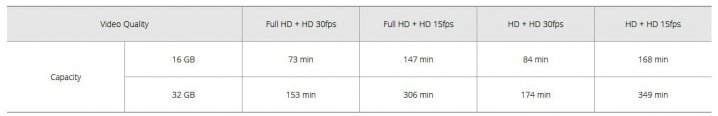

The chart is an approximation of recording duration in accordance to the video quality and the capacity of the Micro SD memory card. Actual recording times may vary.
* Thinkware F550 supports a Micro SD memory card up to 32GB. * Micro SD Memory Cards are considered consumable parts and its life may vary based on user conditions. It carries a six-month warranty.
World's First Design Award "Grand Slam"
The Thinkware Dash Cam F550 is recognized for its brilliant design and ease of use. It is the first and only of the industry to achieve the grand slam by winning all three major design awards: the 2013 IDEA, iF Design Award, and the Red Dot Design Award in 2014.
Security LED
From 13 different LED lamps, you can identify Thinkware DASH CAM F550's present status easily and accurately. It may remind you of KITT, the advanced, artificially intelligent car from Knight Rider, an American television series. The nine security LED lamps at the front indicate its operation and monitoring status helping you prevent criminal attempts when your car is parked. The four LED lamps on the back show the status of the rear view camera, system, GPS, and recording modes.
Easy-to-Use Interface
The Thinkware F550's button layout and cable ports are designed for easy operation and maximum convenience. Thanks to its simplified interface, first-time users will find it extremely easy to use and operate.
Anti-Vibration Mounting
A compact 3M tape adhesive mount eliminates vibration, windshield glare, and replaces the bulky suction cups that often blocks the driver’s view of the road.
Thermal Self-Protection
With its specially designed heat discharge construction and a built-in thermal sensor, the F550 protects itself and its data against intense heat by automatically turning off to prevent device overheating.
Fail-Safe Recording
In the event that the power is lost after an accident, the F550’s fail-safe recording uses the Super Capacitor to ensure that any recording in progress is stored properly – so you can be assured that the data is securely stored under any unexpected circumstances.
Specifications
Dimensions: 105.2 x 61.5 x 41 mm / 4.14 x 6.36 x 1.6 inches
Weight: 140.5g / 0.31lbs
Package: Main Dash Cam Unit, Mount with 3M tape (1ea), Car Charger (Micro USB type), Adhesive Cable Holder (5ea), MicroSD memory card with adapter (consumable),
USB MicroSD card reader, Quick Start Guide/Warranty/User Manual (stored in the MicroSD card)
Camera: 2.0 M Pixel, 1/2.9" (CMOS)
Viewing Angle: Approximately 143° (diagonally)
Video: Full HD (1980X1080), HD (1280X720) for rear view camera when connected
Power: Input Voltage: DC 12/24V (Max 35V), Power Cable Port x 1(MicroUSB) / Power Consumption: 4.8W(mean) - 2ch, 30fp, 4.1W(mean) - 1ch,30fp / Super Capacitor
Interface: 1 x Video-IN (3.5pi), 1 x Video-OUT (2.5pi)
Front Security LED / Operation Status LED / GPS Receiver LED
* This product is intended to record while driving a vehicle. Certain features may not be supported under specific driving, vehicle, and navigation conditions and may be subject to change through firmware update for quality assuranceand safety. Furthermore, recording may not be available under specific user environmentand should be used for reference purposes only.
ZMC Automotive provides a 1-year warranty for all Thinkware products against manufacturing defects when used on passenger cars under normal use within the territory of Singapore. Beware of counterfeits and imitation products by buying only from authorised dealers.
