Read more [+]The Definition of Pretige Cowon's Super WDR and Full HD - Not all Full HD black boxes are created equal. Cowon AF2 with its Full HD quality and Internal 60fps Super WDR technology, captures clear. Seamless images in all situations and conditions. Even the rear camera of Cowon AF2 is a HD 60fps Super WDR camera, which makes Cowon AF2 the world's best 2-channel black box. Performance is guarenteed even in the harshest of environments thanks to an advanced CMOS Image Sensor and high performance ISP chip, which perform 3D Noise Reduction and Defog Function.
A 3.5" LCD touchscreen gives you uncompromised picture size and quality. Cowon's stringent product testing ensures that each and every function provided by AF2 is conveninet and stable.
A Black Box is Defined by its Picture Quality

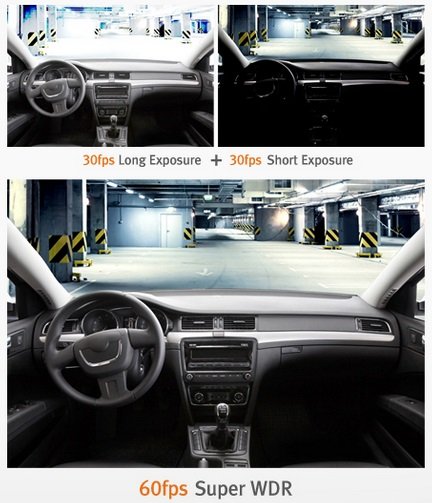

- 60fps Super WDR Caneras Both at the Front and Rear
- AF2 is the world's first black box to be equipped with Full HD and the Internal 60fps Super WDR function for seamless and clear recording in all conditions. A lens exposure time of 60fps (long at 30fps and short at 30fps) captures everything in the field of vision, both bright and dark, to produce clear picture quality. Surpassing the picture quality of software-type WDR of competitors, Cowon AF2 is the world's first hardware type, 2 channel Super WDR.
- 1920x1080 Full HD High Resolution Recording
- Unprecedented picture quality is guaranteed thanks to Super WDR vision correction and Full HD front camera and HD rear camera capture every number plate, object, and accident. Super WDR technology is designed to capture adn save HD quality images of critical information (number plates) in harsh conditions, including backlight, to watch over the treasured asset that is your vehicle.
Crystal-Clear Views through 3.5" Full Touch LCD Screen - Real-Time Monitoring and Convenient Touch-ControlA 3.5" screen gives you a clear and unobstructed front and rear view. A full screen is at your disposal. Effortlessly navigate functions on the full touchscreen. OSD (On Screen Display) information shows various information such as voltage levels, recording mdoes, and date and time. Crystal-clear images are displayed for you in real-time.
What Makes Cowon AF2 High Performance ISP Superior?

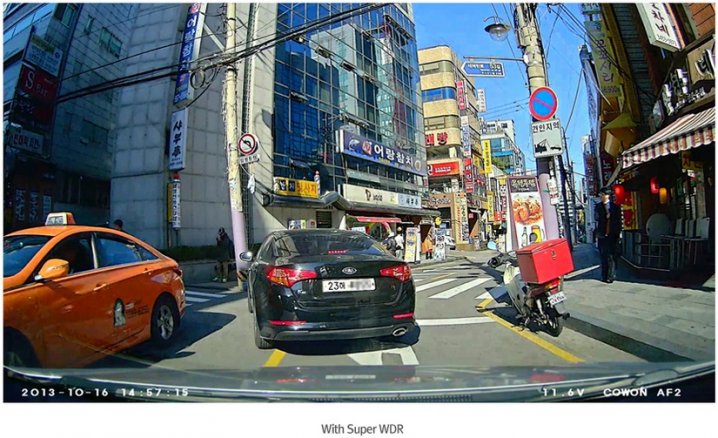

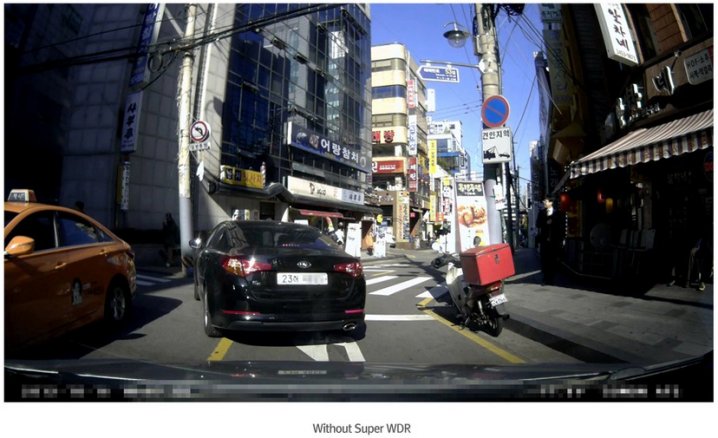

- 60fps Super WDR Picture Clarity at All Time
- The world's first Full HD 60fps Super WDR technology ensures AF2 provides optimum picture quality even in backlight. No matter where the sun is, brightness is automatically adjusted to ensure that the image you see is natural and clear at all times. Images captured and displayed by AF2 are as close as it gets to your own vision. The high performance ISP chip in AF2 provides the world's first FulL HD 60fps Super WDR.
- 3D Noise Reduction Clarity Even During the Night
- There is little light at night and attempting to display bright images inevitably results in increased noise and reduced picture clarity. Cowon AF2 captures and displays clear images even at night. The high performance Cowon AF2 ISP chip increases brightness while keeping noise at a low level for picture clarity at night.
- Defog Function Clarity even during Foggy Days
- The rate of lethal road accidents during foggy days is 11% which is 5 times higher than on a clear day. Also, large scale accidents are more prone to occur. A high performance black box needs a defogging function for accurate recording. Cowon AF2's high performance ISP chip safeguards your vehicle during foggy days and clear days alike.
Equally Efficient Rear Camera - Simply the Most Efficient Camera in the Market
Cowon AF2's HD rear camera also uses the 60gfps Super WDR. Its performance is simply unmatched on the market. HD picture quality is standard, while the PIP function captures and displays rear images on the 3.5" LCD screen in real-time. Select Flip Vertically in Rear Camera Settings to view a mirror image of what is behind you on the 3.5" LCD screen. The Flip Vertically function can be set through PC Manager.
Stability VeriFied Through Testing in the Harshest Conditions - Twenty-Five Stringent Test Guarentee Durability
Cowon's AF2's hear resistence hasbeen rigorously tested to ensure normal functioning in the summer. Twenty-five systematic tests including an extreme temperature test, drop test and vibration test areconducted to verify and ensure AF2's outstanding durability. There is a vent at the top and bottom of the unit for prevention of overheating through active air circulation. A heat absorption sheet is fitted on the CPU and high performance ISP chip for overheating prevention at higher temperatures.

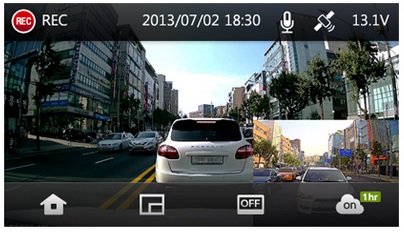

PIP Function for Simultaneously Front-Rear Recording
Look through the front and rear camera simultaneously through PIP (picture-in-picture) function. By touching the Switch Screen button, AF2 shows just the front or the rear camera or both at the same time.

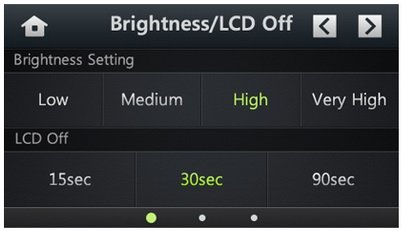

Convenient Settings Change on the LCD Touchscreen
Make and change settings on the 3.5" LCD touchscreen. Navigate through the menus and personalise Cowon AF2 to your taste and needs.

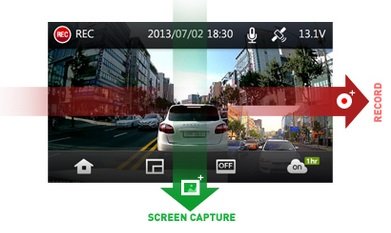

The "Magic Touch" Function
Magic Touch allows manual recording to save event files and capture video images during recording by using simple touch getures. When the LCD touchscreen is switched off or when Live View is enabled, touch the screen and drag from left to right to manually record, and drag from top to bottom to capture the current screen.

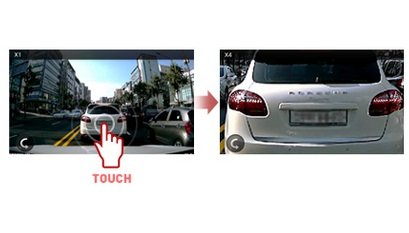

Capture Critical Moments with the LCD Video Zoom and Screen Capture
Analyse critical moments of a recorded accident on the spot using the zoom-in function and the screen capture function. Zoom-in on an auto image by up to 4 times. The zoom-in function can also be used on captured images.
No Separate Power Equipment Needed
- Built-in Uninterruptible Power Equipment
- Install a constant power supply cable to efficiently use your car's battery power and use the parked recording function.

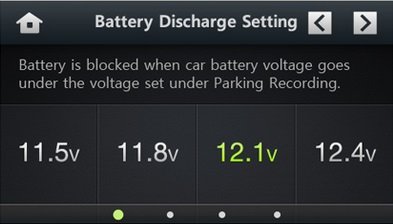

- Vehicle Battery Protection
- When battery voltage of a c ar falls below the preset voltage level, power of AF2 is shut down to protect the battery. This feature allows you to use AF2 without fear of battery discharge during parking.

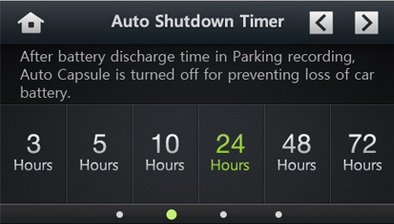

- Equipped with Auto Shutdown Timer under Parking Recording
- It operates only during parking recording. Simply set time when parking recording would start, and when the preset time is up, power AF2 is shut down. This timer is useful for recording only during preset time to save remaining battery.
Voice Technology - Voice Guide and Sound Recording
Cowon AF2's advanced voice guide provides you with accurate and easy-to-understand information. Also, the voice recording function picks up small noises for clear playback.
GPS Black Box Integration - External GPS Module
The highly sensitive GPS modeule records vehicle's speed and location information, which can be checked on the PC Manager.
Extended Recording - Up to 32GB MicroSD Card Support
A MicroSD card with a capacity of up to 32GB can be used for extended recording.
Management using a PC - Exclusive PC Manager
Use the program designed for Cowon AF2 to view recordings. Manage all recordings efficiently. View recordings at an even higher resolution on your PC, and use a variety of functions, including Image Flip and GPS data.
Features
- 2 Channel Front 1080p Full HD + Rear HD
- Super WDR 60 Fps at the Front and Rear
- Crystal Clear 3.5 inch Full touch LCD
- Micro SD 32GB
Specifications
- Lens :
- Front: F2.2 All glass
- Rear: F2.0 All glass
- Image Sensor :
- Front : 2 megapixel CMOS Image Sensor
- Rear : 1 megapixel CMOS Image sensor (1/3")
- ISP : 60fps Super WDR, 3D noise reduction, Defog function
- LCD : 3.5" Wide Full Touch LCD, 16:9 Wide (480x272)
- Recording Resolution :
- 1 ch - Front : FUll HD (1920x1080p), 30fps
- 2 ch - Front : FUll HD (1920x1080p), 23fps | Rear : HD (1280x720p), 23fps
- Recording Angle : Front : Diagonal 126° | Rear : 120°
- Video encoding : H.264 (MPEG-4AVC)
- Recording File Type : Normal / Event / Motion and Capture files
- Audio Recording : PCM
- Battery Voltage Management : Integrated voltage detection circuit (Auto shutdown voltage setting / Auto shutdown timer)
- Software : PC Manager (for Windows PC) - File playback,
- Screen capture, Save recordings, Driving speed, View on map
- Dimension and weight : 93.0 x 67.0 x 18.5mm / Front: 134g | Rear: 40g
- Storage : Support up to 32GB memory card
- Operating Temperature: -20°C~60°C
- Power : DC 12V~24V
- Others : G Sensor, Speaker (voice Guide), Front/Rear LED indicator, External GPS Module
