• TAT Recording Method
  - Every second of video is stored by using TAT recording method. With this system, BH-300 never miss the last moment in case of removing SD card or accident.


• 2.0M Pixel of Front HD
  - High resolution and bright night illumination


• Time Setting Cut-Off Function
  - User can set the cut-off time according to the parking condition (6H, 12H, 24H)


• Security LED Function
  - Protect from robbery using security LED


• "Formatless" Car DVR
  - TAT system is free from format unlike FAT system
  - Makes mamory card lifespan longer
  - Also minimises the dead-sector thanks to no formatting


• 3 Steps Low Voltage Protection
  - User can set the cut-off voltage according to the parking condition (11.8V / 12.0V / 12.2V)


• High Temperature Prevention Function
  - Detect the temperature of inside of car and cut-off the power automatically when it reaches 90°C (approx)


• Assistant LED Light Function
  - LED light provides bright night vision

• Intelligent thing recognition Motion Detect Sensor
  - Motion detect sensor recognises not only high impact but also low impact. It prevents not working recording matter beforehand.

• Normal & Event Recording
  - Re...

• TAT Recording Method
  - Every second of video is stored by using TAT recording method. With this system, BH-300 never miss the last moment in case of removing SD card or accident.


• 2.0M Pixel of Front HD
  - High resolution and bright night illumination


• Time Setting Cut-Off Function
  - User can set the cut-off time according to the parking condition (6H, 12H, 24H)


• Security LED Function
  - Protect from robbery using security LED


• "Formatless" Car DVR
  - TAT system is free from format unlike FAT system
  - Makes mamory card lifespan longer
  - Also minimises the dead-sector thanks to no formatting


• 3 Steps Low Voltage Protection
  - User can set the cut-off voltage according to the parking condition (11.8V / 12.0V / 12.2V)


• High Temperature Prevention Function
  - Detect the temperature of inside of car and cut-off the power automatically when it reaches 90°C (approx)


• Assistant LED Light Function
  - LED light provides bright night vision

• Intelligent thing recognition Motion Detect Sensor
  - Motion detect sensor recognises not only high impact but also low impact. It prevents not working recording matter beforehand.

• Normal & Event Recording
  - Records all the images during driving and when shock is detected, event recording gets performed for a certain period.

• Emergency Button Recording
  - User can record event manually with emergency button and the data is protected from overwriting.

Never Miss the Moment of Accident Using TAT Format

TAT Format Saving System makes it possible to record 1 second basis without super capacity (back up battery).

High Temperature Prevention Function

If the temperature goes up to 90°C, it detects and cut-off the power automatically. Also the Watch-Dog function resets the device auomatically in extremely cold weather condition.

Hypersensitive GPS - Easy to connect the External GPS module (Optional)

GPS module provides the speed and location of vehicle on the google map of dedicated PC viewer.

Security LED

Prevents vehicle thefts by using security LED

Video Recording

Records video and audio at the same time. Holds recording button for 3 seconds, then it stops recording voices.

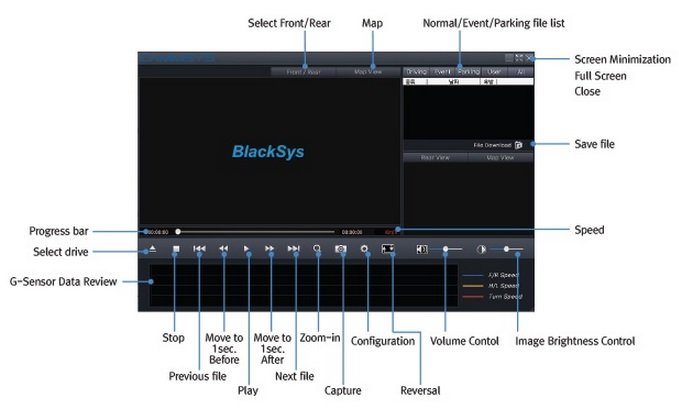

Dedicated PC Viewer



Specifications

• Camera
  - Module : 2.0M Pixel (CMOS Image Sensor)
  - Angle of view : 120°


• Function
  - Codec : H.264 Baseline Profile
  - Resolution : HD (1280x720)
  - Basic recording : Normal recording
  - Option recording : Event recording | Manual recording
  - Recording method : In case SD card is full, it deletes the oldest files automatically in order
  - Voice recording : Records voice using inner mic
  - Format : Micro SD Card formart
  - External GPS : Optional
  - Shock sensor : Tri-axial shock detection G-Sensor
  - Memory storage: External Micro SD Memory (4G~32G)

• Display
  - Video output : Composit output
  - Video playing : Exclusive Viewer
  - Video analysis : Videoanalysis is possible using Exclusive Viewer

• Temperature
  - Operation temperature : -10°C~+60°C
  - Storage temperature : -20°C~+70°C


• Power
  - Input voltage : DC 12V


• Dimension (mm) : 76(W) x 20.5(L) x 28(H)


• Weight : 35g
