Lukas LK-9390 AD comes with ADAS (Advanced Driver Assistance Systems) for safe drive.
- 3.5" Full Touch LCD
- ADAS (Advanced Driver Assistance Systems)
- 2 way Full HD/ High Definition with 30fps
- WDR (Wide Dynamic Range) capability
- Lukas night vision
- The lowest current consumption in its class
- The widest operating temperature coverage in its class
Stop Drowsy Driving!!Safe driving is accompanied by Lukas LK-9390 AD, comes with ADAS (Advanced Driver Assistance Systems).

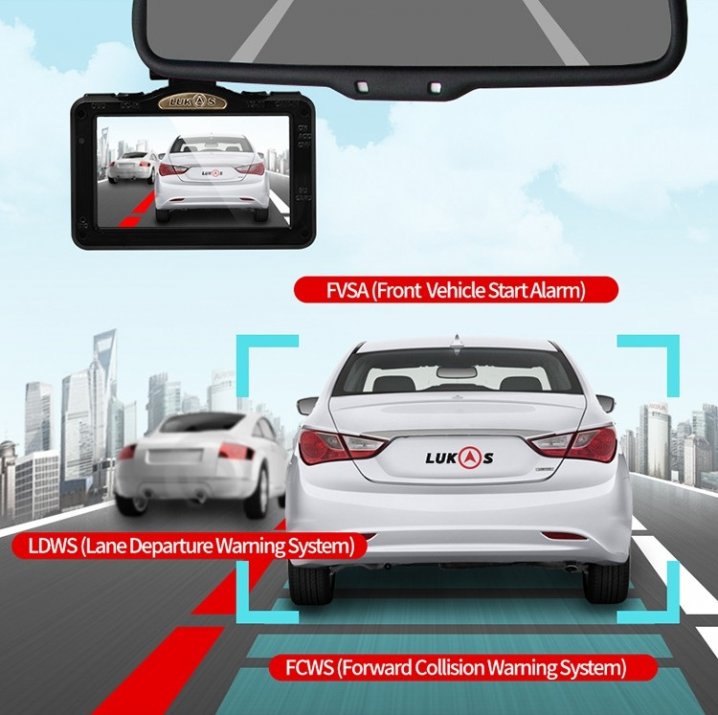

Prevent accidents with Lukas ADAS
Advanced Driver Assistance Systems (ADAS) are developed for safety and better driving.
Lukas ADAS includes
- FCWS (Forward Collision Warning System)
- LDWS (Lane Departure Warning System)
- FVSA (Front Vehicle Start Alarm)
*ADAS function may not be activated ion the shaded areas and with poor GPS signal reception.

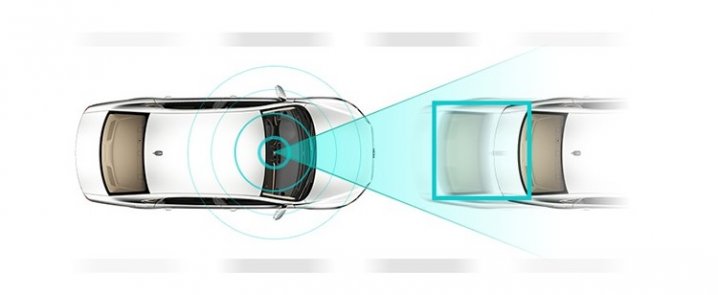

FCWS (Forward Collision Warning System)This system is a safety system designed to reduce the severity of an accident. It uses camera forward-looking sensors to detect an imminent crash. Once the detection is done, these systems provide a warning to the driver when there is an imminent collision.
!--endimgtag2--
LDWS (Lane Departure Warning System)Lane Departure Warning System is designed to warn a driver when the vehicle begins to move out of its lane on freeways and arterial. These systems are designed to minimise accidents by addressing the main cause of collision: driver error, distractions and drowsiness.
FVSA (Front Vehicle Start Alarm)Front Vehicle Start Alarm is for generating an alarm upon start of vehicle in fornt of the subject vehicle during stop and ...
Read more [+]Lukas LK-9390 AD comes with ADAS (Advanced Driver Assistance Systems) for safe drive.
- 3.5" Full Touch LCD
- ADAS (Advanced Driver Assistance Systems)
- 2 way Full HD/ High Definition with 30fps
- WDR (Wide Dynamic Range) capability
- Lukas night vision
- The lowest current consumption in its class
- The widest operating temperature coverage in its class
Stop Drowsy Driving!!Safe driving is accompanied by Lukas LK-9390 AD, comes with ADAS (Advanced Driver Assistance Systems).
Prevent accidents with Lukas ADAS
Advanced Driver Assistance Systems (ADAS) are developed for safety and better driving.
Lukas ADAS includes
- FCWS (Forward Collision Warning System)
- LDWS (Lane Departure Warning System)
- FVSA (Front Vehicle Start Alarm)
*ADAS function may not be activated ion the shaded areas and with poor GPS signal reception.

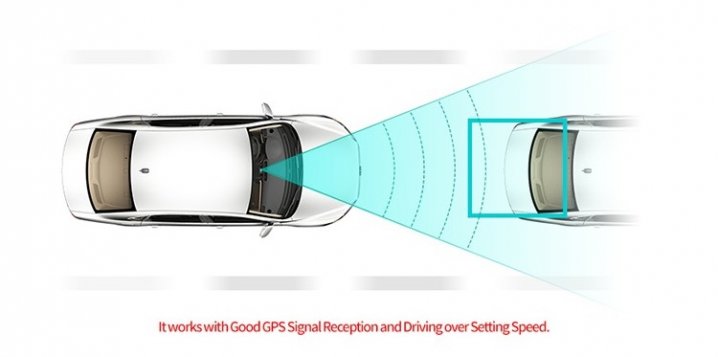

FCWS (Forward Collision Warning System)This system is a safety system designed to reduce the severity of an accident. It uses camera forward-looking sensors to detect an imminent crash. Once the detection is done, these systems provide a warning to the driver when there is an imminent collision.

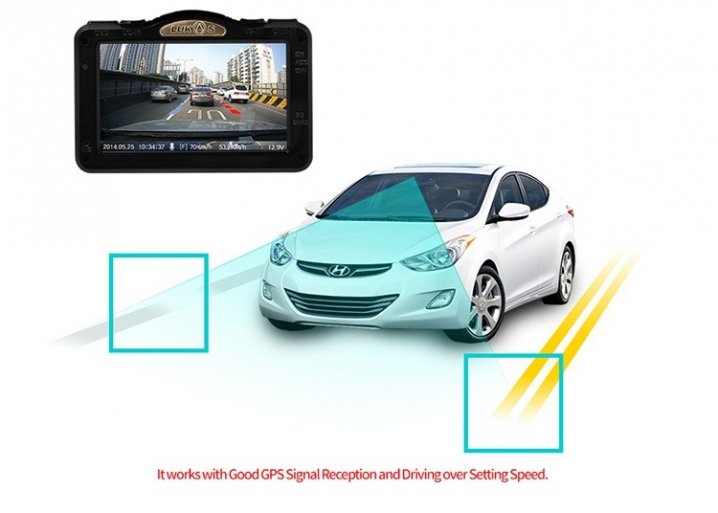

LDWS (Lane Departure Warning System)Lane Departure Warning System is designed to warn a driver when the vehicle begins to move out of its lane on freeways and arterial. These systems are designed to minimise accidents by addressing the main cause of collision: driver error, distractions and drowsiness.
FVSA (Front Vehicle Start Alarm)Front Vehicle Start Alarm is for generating an alarm upon start of vehicle in fornt of the subject vehicle during stop and waiting for a signal. Intelligent smart system for driver's convenience!

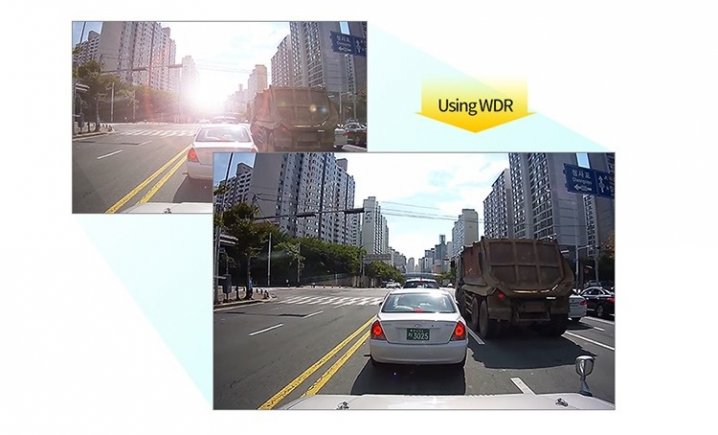

WDR (Wide Dynamic Range)WDR function can record the video greater scene details, from shadows to highlights than normal. WDR provides clear images even under backlighting, where the intensity of illumination varies a lot like very bright and dark areas simultaneously in the camera's field of view. WDR allows an imaging system to correct for the intense back light surrounding a subject and thus enhances the ability to distinguish features and shapes on the subject.
Lukas Night VisionLukas Night Vision improves the image quality in darkness or poor weather. Lukas cutting edge image signal processing technology allows improved brightness of video in the Parking Mode even at night.

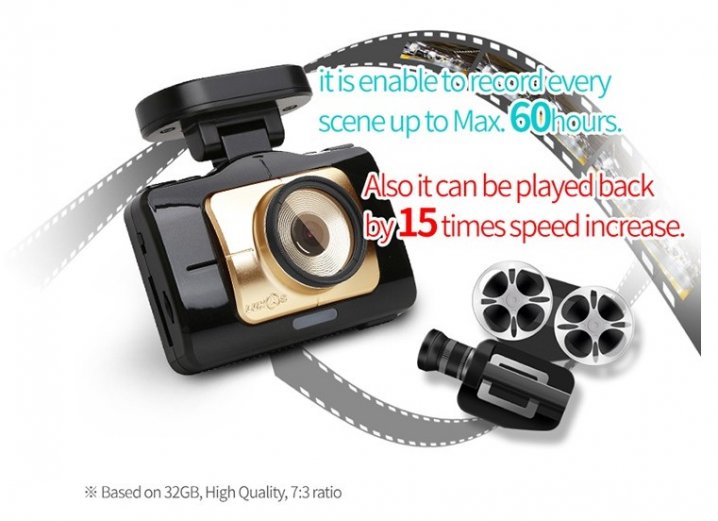

Time LapseLong-term recording is available with Lukas. In the Parking Mode Recording, an image of a scene is captured once every second. It is able to record every scene up to a maximum of 60 hours.

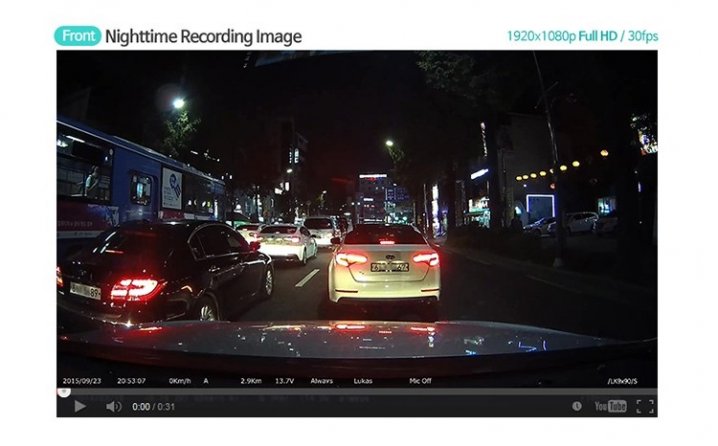

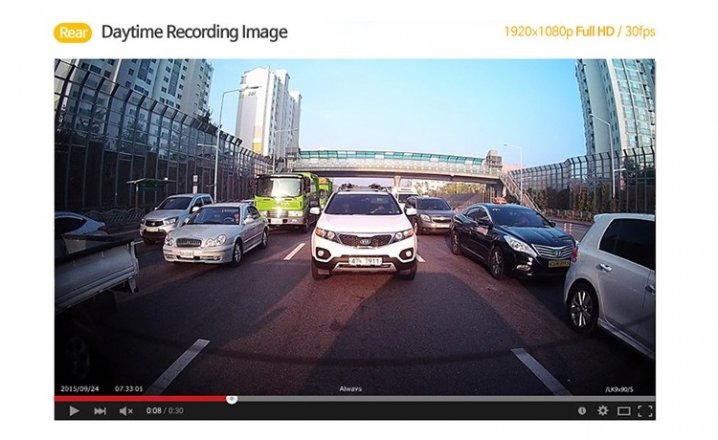

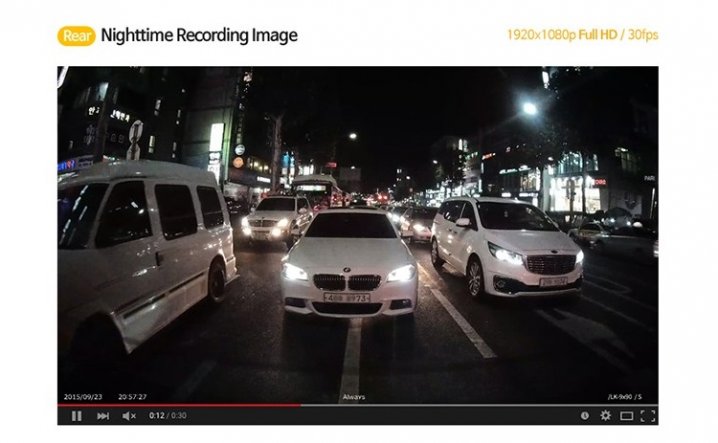

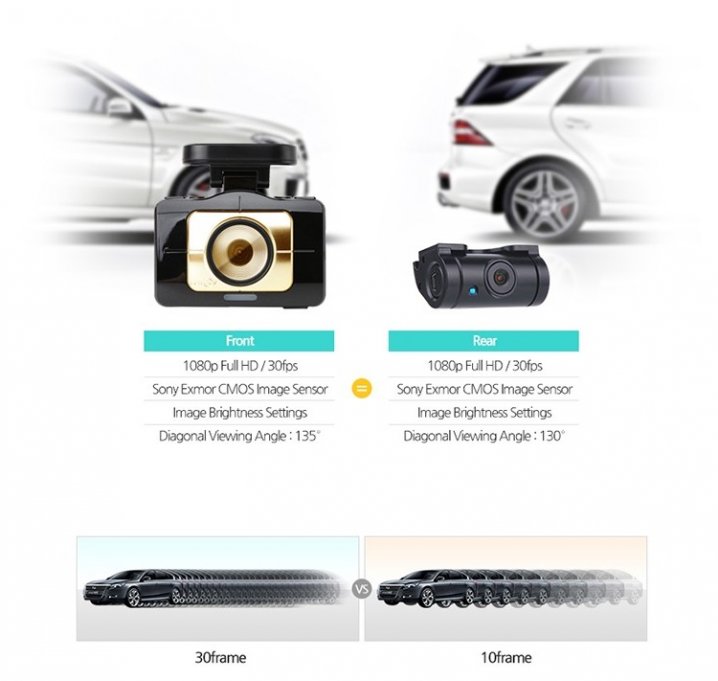

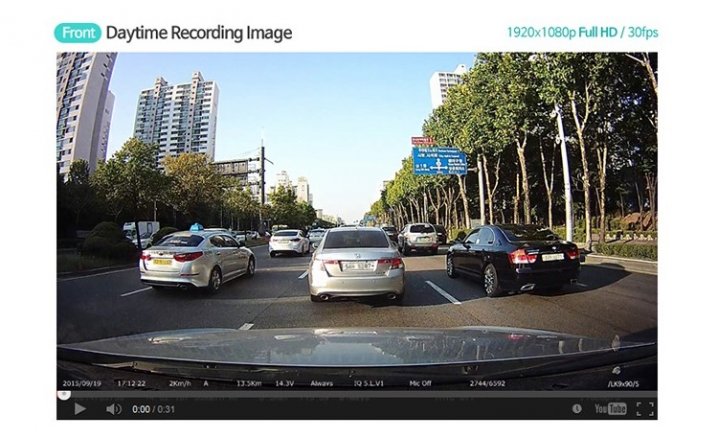

Amazing Video Quality of Front/Rear Dual Full HD
- Front/Rear Camera - both record at 1920x1080p
- Front/Rear Camera - both equipped with the SONY CMOS Image Sensor
Experience the Best Video Quality!Sony Exmor CMOS Sensor
The Lukas LK-9390AD supports 1920x1080p Full HD front and rea camera recording. Each equipped with a Full HD SONY IMX322 image sensor for more clear and accurate detail. The SONY IMX322 camera sensor greatly improves image quality for both daytime and nighttime content.
3.5" Full Touch LCD Screen The 3.5" LCD screen allows the user to comfortably navigate and view real-time content.
The Simplistic GUIOut intuitive one-finger-touch user interface allows for rapid navigation through functions and menus without the multi-touch convenience.
Take Advantage of The Highst Capacity Dash CameraWith the Unique and Innovative Technology of Lukas!
The Lukas LK-9390AD uses Korea's first and largest dual slot storage technology, simultaneously using a SD/microSD cards for a larger more efficient storage capacity. Continuous/parking content is stored to the SD card and event content is stored to the microSD. This allows for effective utilisation of memory space for a more rapid indexing of desired content. The SD card/microSD card slot reader(s) are supported up to 512GB which can be dually extended to a maximum of 1024GB.
The LK-9390 AD is Designed to Withstand Extreme TemperaturesThe Lukas LK-9390 AD has been tested to endure even the most harsh summer and wonter temperatures. Temperature durability of -30°C~80°C (-22°F~176°F).
Support Diverse Recording
- Continuous Recording
Recoding continues while power is on. Video sequence is stored every 3 or 5 minutes. If the storage capacity reaches its maximum, an automatic deletion will be applied for older files for continuous storage.
- Event Recording
Instant recording upon impact and categorised for an easy search. Stored recordings will be footage 10 seconds before the impact and 20 seconds after the impact for a total of 30 seconds of event footage. Event recordings will be saved separately to the microSD card.
- Parking (Motion-Detection) Recording
To ensure device will not capture a light impact event, recording will begin by detecting even a slight motion of an object. The device will record and store content for 10 seconds before deletion, 20 seconds during or after detection for a total of 30 seconds of content.
- Manual (Emergency) Recording
You can proceed with the recording simply without complicated operation even in no impact situation. Recoded and stored are images for 10 seconds before emergency recording, 20 seconds after emergency recording and thus 30 seconds in total, do not miss the moment but store it.
Diverse and Convenient FunctionsLukas LK-9390 AD is one of the best flagship products among the Lukas premium models. LK-9390 AD will give you peace of mind while on the road. The convenience of the clear, Full HD content available at your fingertips is assured to capture every moment.
Conveniently Review Dash Camera Operation - Voice Guidance Function
Voice Guidance Function will inform user of the current operating state.
Responsible for the Safety of My Car - Mounting of Security LED
Light of the highly bright security LED informs the operation of a dash cam in the car to the outside, preventing accident in advance.
More Accurate Location Detail - GPS+GLONASS
The LK-9390 AD is equipped with a dual-core location GPS+GLONASS system. Combined access to GPS and GLONASS improves location accuracy, reliability and speed.
Safe Recoding in an Emergency - Super Capacitor
The integrated super capacitor allows for safe storage of content in the event of an emergency.
No More Worries about Battery Drain while in Parking - Car Battery Discharge Prevention Function
The LK-9390 AD is integrated with a low voltage cut-off and battery interruption function, effectively protecting the vehicle's battery life from drainage.
Simple & Easy Formatting - Direct Formatting Function (exFAT Format)
The device can format the SD card in it by itself. Do not need to remove the SD card and connect PC to format it.
*exFAT formatting is not available on Windows XP. Download patch file at Lukas website to enable exFAT formatting.

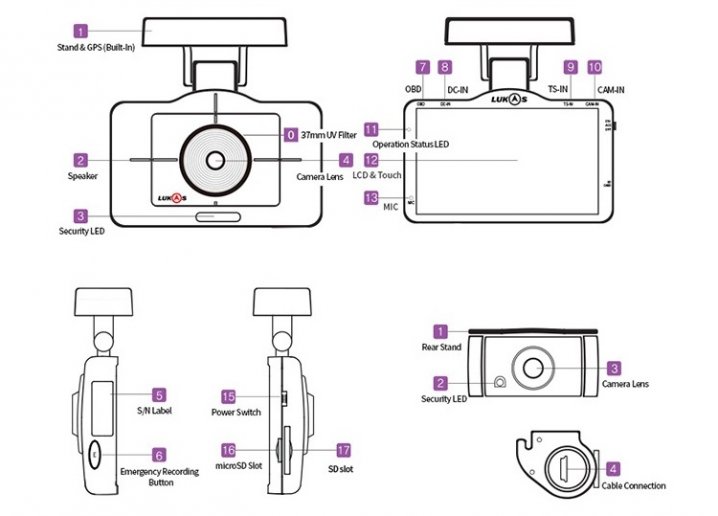

Name & Part Function
Specifications
- Camera :
Front Full HD dedicated 2.1M Effective Pixel SONY IMX322 Sensor, 1/2.9"
Rear Full HD dedicated 2.1M Effective Pixel SONY IMX322 Sensor, 1/2.9"
- Viewing Angle:
Front Diagonal (approx 135°) / Effective Angle: horizontal (approx 107° / vertical (approx 55°)
Rear Diagonal (approx 130°) / Effective Angle: horizontal (approx 105° / vertical (approx 54°)
- Recording Resolution & Frame
Front 1920x1080 (Full HD), 30fps
Rear 1920x1080 (Full HD), 30fps
- LCD Resolution & Size : Resolution (480x272) | Size 3.5", built-in touch
- Video Compression : MP4 (MPEG), Codec Profile: HIP (H.264 High Profile Level 4.2)
- Gravity Sensor : Built-in 3-axis impact sensor (impact, sudden brake, sudden start)
- GPS : Dual Band (GPS+GLONASS)
- Storage :
SD Card : SDHC/SDXC, memory card (standard 8G, max 512G)
microSD: microSDHC / microSDXC (standard 8G, max 512G)
- Player : General media player / Lukas viewer
- Audio : Built-in speaker, microphone
- Current Consuption : 270mA (13.4V), under 3.6W | without GPS, LCD brightness 1
- Power : DC 9V ~ 24V
- Low Voltage Cut-off : Able to set time and voltage, supports multi booting
- Operating & Storage Temperatures :
Operating : -30°C~80°C (-22°F~176°F)
Storage : -40°C~90°C ((-40°F~194°F)
- Size & Weight
Front : 111x99x37mm, 161g
Rear : 50x26x31mm, 25g
