High-Performance Car Amplifier M-90.4
Features:
Power Connection:
RCA Connection:
Speaker Connection:
Specifications:
Features:
- 4-Channel High Power Class-AB amplifier with SMD technology
- MOS-FET Power Supply
- Stable into 2 ohm stereo per channel and 4 ohm bridged mode
- Variable switchable Low Pass Filter from 50 to 3500 Hz
- Variable switchable High Pass Filter from 50 to 4000 Hz
- FSA Front Stage adjuster for analog phase correction for the left front channel
- High-Level-Input with automatically „TURN ON“
- 2CH / 4CH input mode selectable button
- Input Sensitivity: variable 300 mV maximum to 8 V minimum
- Multi-Way Protection Circuitry: overheating, overcurrent and short circuitry
- Operating Voltage: DC 10 ~ 16 V Power Input (DC 20 ~ 28 V in R-110.4 24 V)
- Massive heavy aluminum-heatsink
- Wired Remote Controller RTC (Optional)
- 3-step ON TOP ventilation system
- Very fast and steplessly adjustable Music Detection

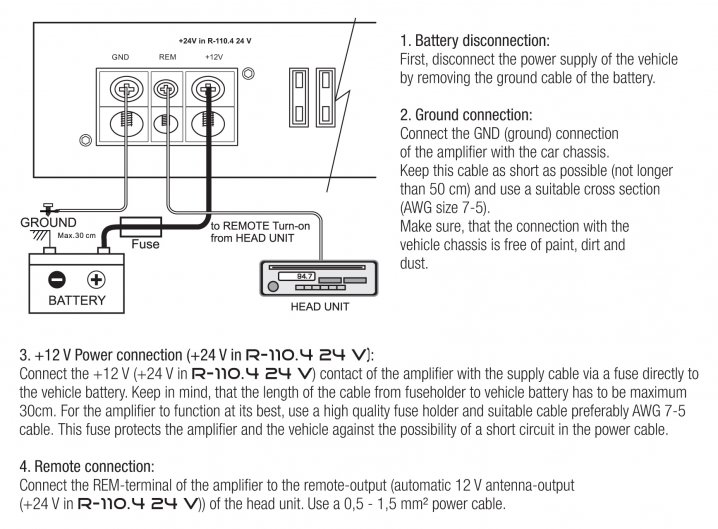

Power Connection:

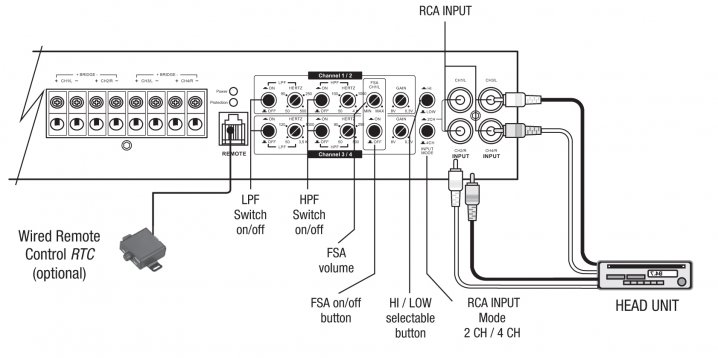

RCA Connection:

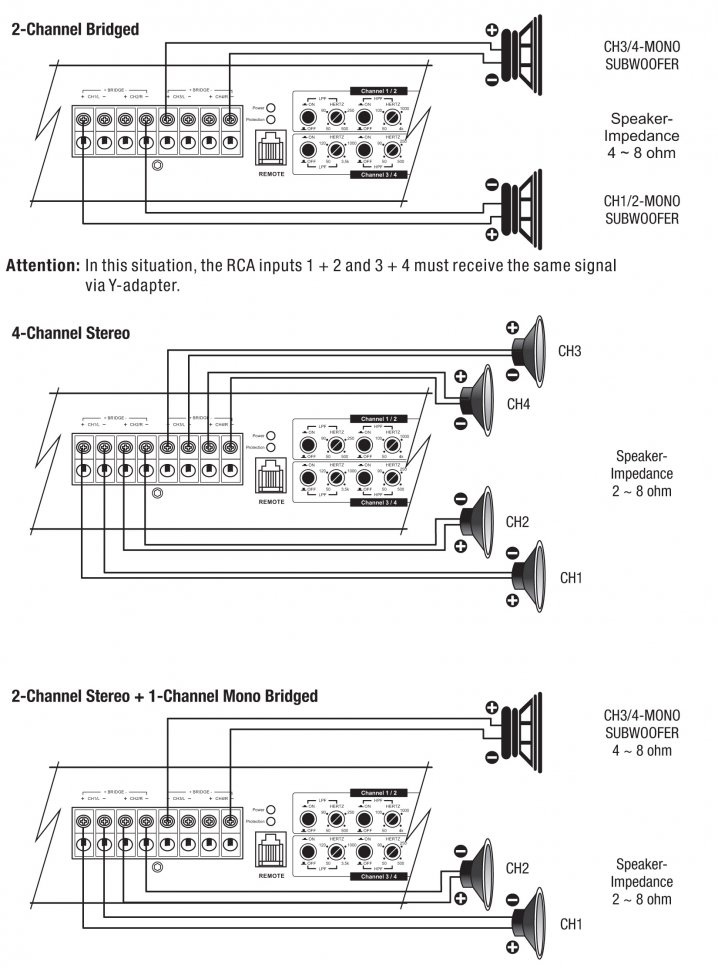

Speaker Connection:
Specifications:
- Power Supply Voltage: 10 -16 V
- Rated Power Output at 14,4 V:
-RMS power @ 4 Ohm Stereo: 4x 90 W
-RMS power @ 2 Ohm Stereo: 4x 160 W
-RMS power @ 4 Ohm gebrückt: 2x 320 W - Signal to Noise Ratio: >90 dB
- Low Pass Crossover: 50 Hz ~ 3500 Hz
- High Pass Crossover/ Subsonic Filter: 50 Hz ~ 4000 Hz
- Frequency Response: 10 Hz ~ 60 KHz (+/-1dB)
- THD@RMS Watts: < 0.036%
- Channel Separation: 75 dB
- Fuse Rating: 2x 30 A
- Input Sensitivity: 300 mV ~ 8V (+/- 5%)
- Dimensons: 295(L)x 50(H)x 185(W)mm
|
|
||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||
|
|
||||||||
|
|||||||||
