Single-channel dashcam with BlackVue Cloud connectivity. Feature with Full HD Sony STARVIS image sensor gives you the best image quality under any light.
Features & Specs
BlackVue DR770X-1CH - Reliable and Connected Dashcam
Single-Channel Full HD Cloud Dashcam
The DR770X-1CH is a single-channel dashcam with BlackVue Cloud connectivity. This series improves further on the ability to capture detail in the most contrasted scenes.
The Full HD Sony STARVIS image sensor gives you best image quality under any light. This stealthy dashcam also packs built-in GPS, Wi-Fi and native Parking Mode support via included hardwiring cable.
View and download videos easily with the BlackVue App. Cloud support via Wi-Fi router or optional USB plug-in LTE module.
Front camera with Full HD (1920 x1080)
Reduced motion blur with high frame rate @60FPS
2.1M Pixels front SONY Starvis image sensor with Night Vision
BlackVue DR770X-1CH - Reliable and Connected Dashcam
Single-Channel Full HD Cloud Dashcam
The DR770X-1CH is a single-channel dashcam with BlackVue Cloud connectivity. This series improves further on the ability to capture detail in the most contrasted scenes.
The Full HD Sony STARVIS image sensor gives you best image quality under any light. This stealthy dashcam also packs built-in GPS, Wi-Fi and native Parking Mode support via included hardwiring cable.
View and download videos easily with the BlackVue App. Cloud support via Wi-Fi router or optional USB plug-in LTE module.
Front camera with Full HD (1920 x1080)
Reduced motion blur with high frame rate @60FPS
2.1M Pixels front SONY Starvis image sensor with Night Vision
Support Parking Mode with Impact and Motion Detections, Time Lapse and Region-based Motion Detections
Support optional LTE Module for Cloud Connectivity
Support Native Parking Mode (hardwiring cable included)
Seamless Pairing features for effortless setup
1CH models upgradable to 2CH, includes port for rear or interior camera
Touch sensors triggers manual event recording
Full HD Cloud Dashcam​ ​​
NEW STANDARD IN CONNECTED DASHCAM
DASHCAMS WITHOUT COMPROMISE
Improved Sony STARVIS Image sensors
Front cam: 2.1 megapixels STARVIS sensor / Full HD (1920×1080 @60FPS) / View angle: 139 degrees.
Rear cam (DR770X-2CH): 2.1 megapixels STARVIS sensor / Full HD (1920×1080 @30FPS) / View angle: 139 degrees.
Smooth video with reduced motion blur @60FPS front camera.
With the free BlackVue Cloud add-on service, check on your car anytime, anywhere.
High Frame Rate for Extra Fluidity

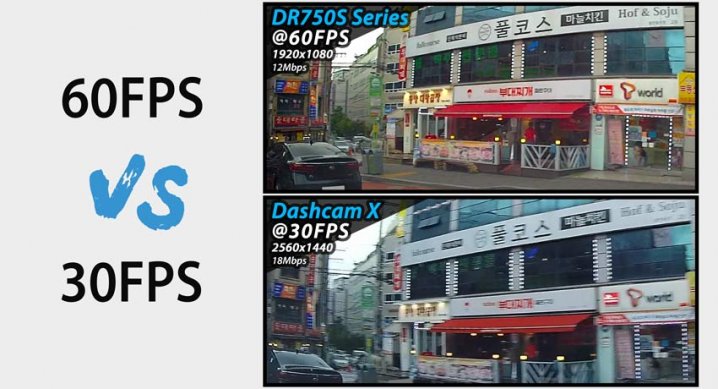

THE ADVANTAGE OF 60FPS VIDEO CAPTURE ​ The front-facing camera records extra fluid videos at 60 frames per second, keeping all details sharp even in fast action. With 60fps, motion blur is much reduced compared to 30fps. That means your BlackVue can better capture details–like license plates–even in fast-moving objects. ​ Note 1: the higher the image quality setting, the higher the bitrate and the bigger the file size. A bigger size will increase the time necessary to transfer a video file over Wi-Fi. Note 2: Remote Live View using BlackVue Over the Cloud is not affected by the image quality and framerate settings.
Seamless Pairing ​

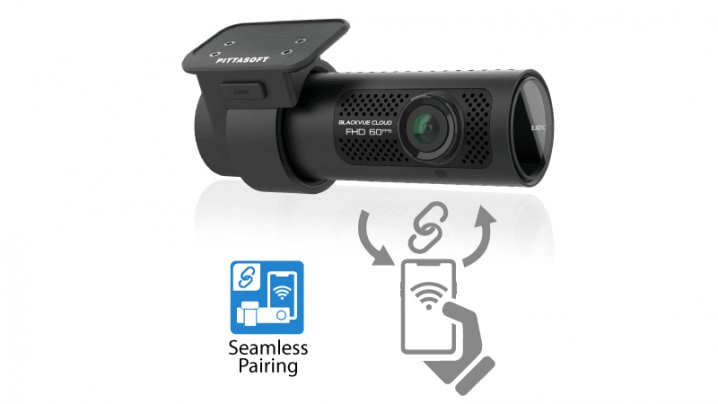

Effortless setup ​Simply connect to your dashcam without leaving the BlackVue App. With Seamless Pairing, setting up your dashcam is a breeze. Just power the dashcam, then easily connect from the BlackVue app and follow the simple instructions. Whether you want to browse your dashcam’s files and settings or connect your dashcam to the Cloud, Seamless Pairing makes everything easy and intuitive.

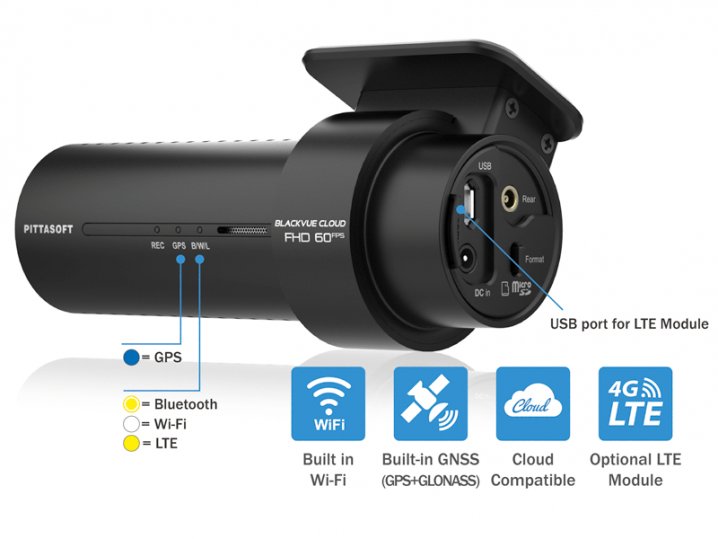

GPS, WiFi and Optional LTE ​
GPS: visualize the location of your vehicle on the map during video playback and overlay speed on videos (can be hidden in settings).
Wi-Fi: lets you connect to your BlackVue with a smartphone or tablet. Wi-Fi also lets your BlackVue connect to BlackVue Cloud via any home or mobile Wi-Fi hotspot (router). ​ LTE: connect the optional LTE connectivity module* via the USB port for the best Cloud experience. (*) SIM card not included.

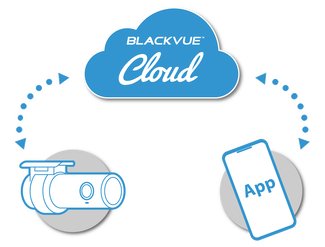

BlackVue Over the Cloud
Connect to your BlackVue anytime, from anywhere in the world with free Cloud Service.
Enjoy remote Live View and Event Push Notifications to your phone.
Back up important videos to the Cloud remotely.
GPS Tracking
Play and download videos from your dashcam’s memory or the Cloud from anywhere.​​
Enjoy Two-way Voice Communication with the driver from the app through the BlackVue’s integrated speaker and mic.
Get instant Event Push Notification to your phone upon an impact detection when you are away.

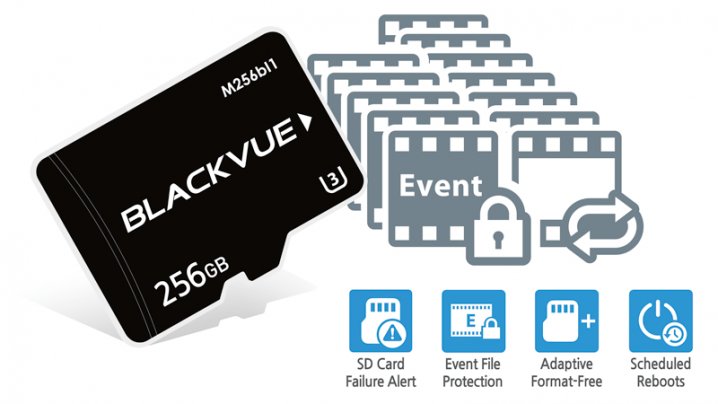

Event Files Overwrite Protection: Dashcams record in a loop, overwriting older files when the memory is full. DR770X Series with optional setting to preserve the last 50 Event videos at all times so you always have time to retrieve important footage without it getting overwritten.
Adaptive Format-Free File Management: This BlackVue-developed file system improves recording stability and requires less microSD card formatting.
SD Card Failure Alert: your BlackVue detects as soon as the microSD card fails and warns you with a “Please check SD card” voice alert.
​High Capacity Memory Storage up to 256GB
Scheduled Reboots (see Parking Mode section below)​
Built-in Impact and Motion Detection
Automatically tags important files While driving, your BlackVue detects impacts and sudden changes in speed. While parked, it also detects movements*.
Use the filters in the BlackVue App and Viewer All videos are tagged (Normal, Event, Parking Mode motion or time lapse), so that you can easily find the relevant ones in the BlackVue Viewer for Windows and Mac OS or the BlackVue App for Android and iOS.
* For Parking Mode, the dashcam needs to be hardwired with power from your car battery or an optional Cellink Battery pack.
Sleek Interface
EASIER OPERATION

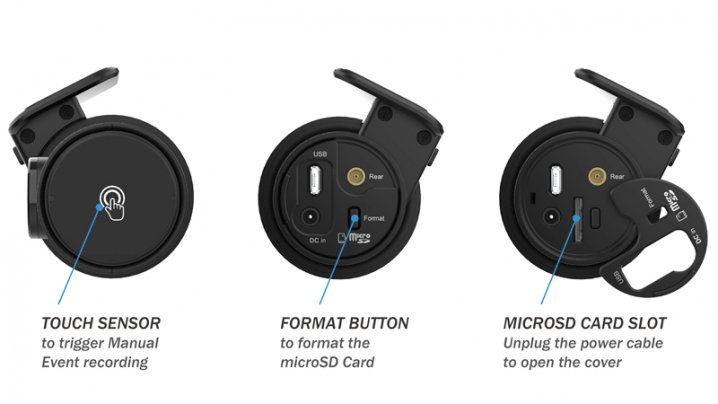

​Programmable proximity sensor Tap the touch sensor to trigger Manual Event videos
Format button Hold to format the microSD card.
Secure microSD card access Unplug the DC in power connector and pop the cover open to reveal the microSD card slot.

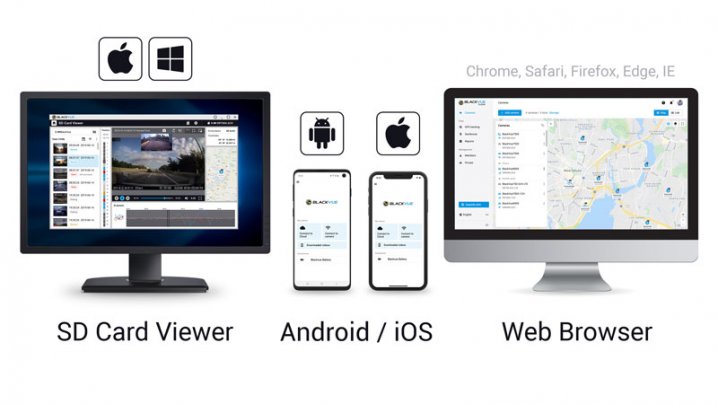

Intuitive App & Viewer ​ EASILY MANAGE YOUR VIDEO FILES Easily change your BlackVue configuration settings and browse your videos on your mobile or computer.
With the BlackVue App, connect to your BlackVue to access files and check real-time Live View for easy setup of your dashcam.
With the SD Card Viewer, connect your dashcam’s microSD card to your computer to view and backup footage in bulk, as well as export clips, remove sound, etc.
The Web Viewer lets you manage your Cloud-connected dashcams from any web browser at blackvuecloud.com.
High-Quality Coaxial Cable
Connects front and rear camera
Safer and faster data transmission comparing with USB cable
Minimise noise for better image quality
Default cable length of 6 meters is sufficient for most cars, vans, SUVs and MPVs. Optional cable length of 10 or 15 meters is available upon request if needed. ​
High-Temperature Cut-off
HIGHER HEAT ENDURANCE​​
Endures higher operation temperature than earlier models

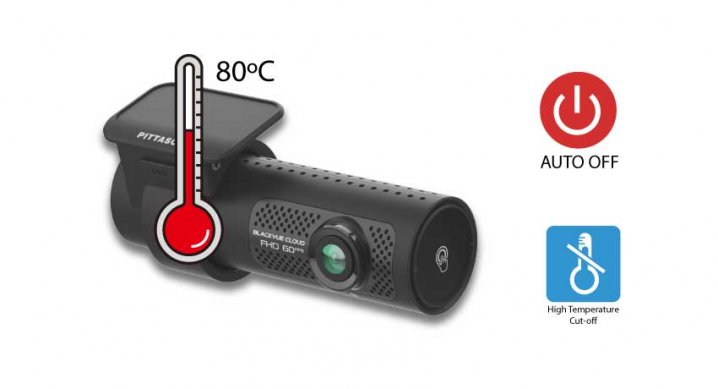

Automatically cuts off the operation when temperature reaches 80 degree Celsius. Automatically restart when temperature cools down to 55 degree Celsius. ​​
Protects the product from the harm of over temperature.
Native Parking Mode

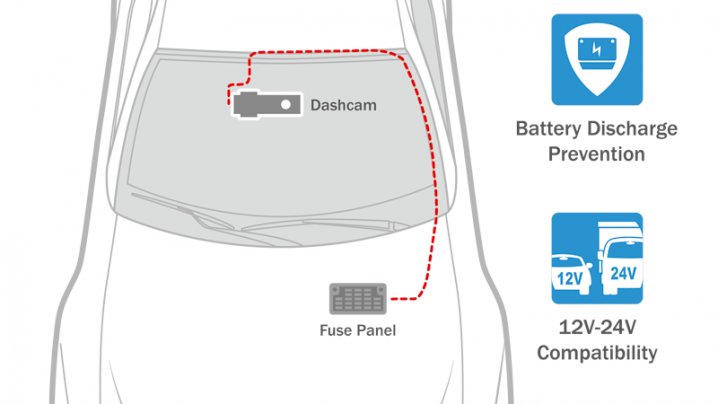

Hardwiring cable included DR770X Series can be hardwired to your vehicle’s fuse panel for Parking Mode, without requiring optional accessories. The dashcam will switch to Parking Mode automatically when vehicle ignition is turned off. Voltage cutoff and timer can be set in the BlackVue App.

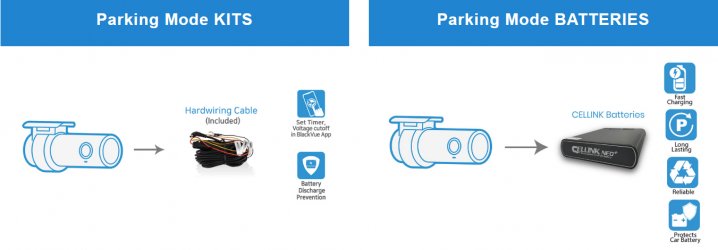

Parking Mode accessories support DR770X Series is also compatible with all Parking Mode Kits and Batteries.
Disclaimer: Vehicle battery life and performance maybe affected which lead to premature failure especially with frequent short driving. Not compatible with some continental vehicles which may triggers dashboard error. Not recommended for most new vehicles under warranty due to agent restrictions.
Intelligent Parking Mode
​Peace of mind with extra security when you are away from your car ​ ​With Parking Mode Kits or Batteries, you can rest easy, knowing that your car is being monitored while you are away. BlackVue automatically switches to Parking Mode to monitor your parked vehicle. ​ ​Thanks to video buffer, the few seconds leading to triggering events are also recorded.
​​Motions recorded by the image sensor (marked “P” in the file list).
Impacts detected by the accelerometer/G-sensor (marked “E” in the file list).

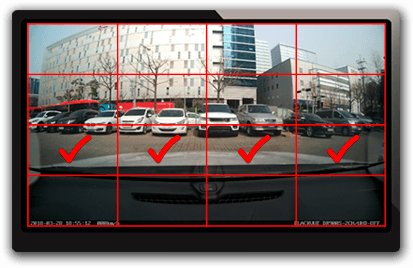

Choose detection regions to reduce the risk of triggering unwanted motion recordings due to trees swaying in the wind, far-away moving objects, etc.

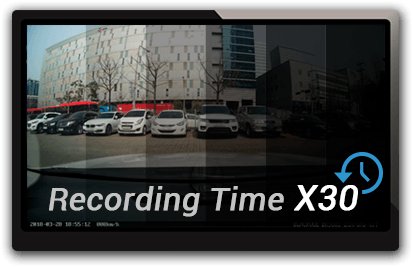

Continuously records at 1FPS (one frame per second). Videos are played back at 30FPS. 1-minute Time lapse Parking Mode video = 30 minutes real time coverage. Cover a period of more than 27 hours on a 16GB microSD card front and rear at the highest (Extreme) quality setting. When an impact is detected, the dashcam creates a buffered Event video.
Note: In Time Lapse mode, only the impact Event videos include buffering. In Motion & Impact Detection mode, both motion and impact videos include buffering. Learn more about Time Lapse and Motion & Impact Detection here >.
Parking Mode Event Voice Notifications: Upon exiting Parking Mode, your BlackVue tells you if Events were recorded when you were away from your car, so you can check right away the Event videos on the BlackVue App. ​Watch video.
​Push Notification: ​If your dashcam is connected to the Cloud Service, you will receive instant push notification to your smartphone if there's an impact detected when you're away from your car. ​
Super stealthy: Completely turn off all LED indicators in Parking Mode. Only the recording LED indicator facing the interior of the vehicle will blink when motion or impact is detected.
Scheduled Reboot: ​Schedule a daily automatic reboot (optional—by default at night) to minimize potential errors. Reboots happen only if the dashcam is in Parking Mode and not writing data to the microSD card. This means no Normal driving, Event, or Parking Mode recording can be interrupted by a scheduled reboot.
Technical Specifications:
Model Name: DR770X-1CH
Type: 1 Channel (upgradeable to 2-Channel)
Highlights: Full HD, Cloud, Wi-Fi, GPS, Improved Sony Sensor, External LTE Module (optional)
Product Dimensions: W 118.5 mm x H 36 mm / 103 g
Rear Camera Connection: Coaxial cable
Memory support: MicroSD card up to 256GB
Recording Mode: • Normal recording, • Event recording (when impact is detected in normal and parking mode), • Manual recording • Parking recording (when motion is detected). * When using Hardwiring Power Cable, ACC+ will trigger parking mode. When using other methods, G-sensor will trigger parking mode.
Parking Mode: Yes (with 3-wire hardwiring cable included) using power from car battery or optional Cellink Battery is fully recommended.
Parking Mode Event Voice Notifications: Yes
Imaging Sensor: Improved Sony STARVIS CMOS Sensor (Approx. 2.1MP)

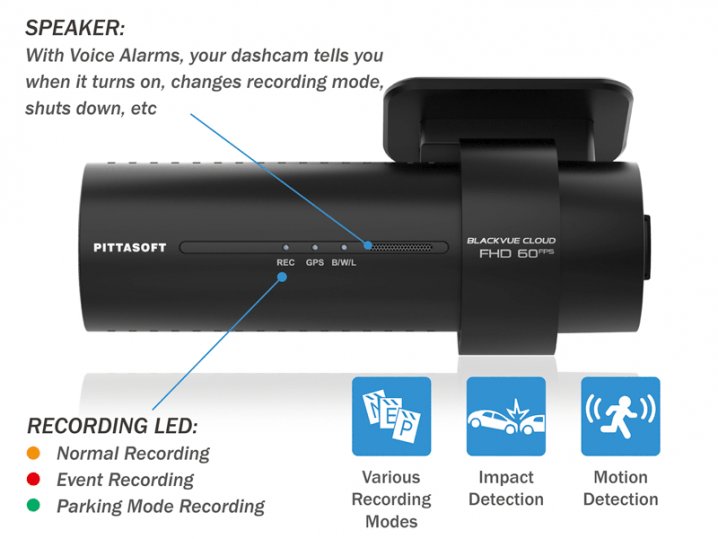

LED Indicators: Recording LED, GPS LED, LTE/Wi-Fi LED, Front Security LED, Proximity Sensing indicator LED
Button: Format Button: Press and hold format button for 5 seconds, and after a beep, release the button. Then, press again and hold for 5 seconds and release the button after a beep to format the microSD card. Touch Sensor: Pressing the touch sensor triggers manual recording depending on the firmware settings.
Power Consumption Hour: 2.60W (Parking Mode when GPS off and Wi-Fi On) 2.20W (Parking Mode when GPS and WiFi are Off) * Actual power consumption may vary depending on use conditions and environment.
Certifications: FCC, CE, RoHS, Telec, WEEE, IC
Software: BlackVue Viewer * Windows 7 or higher, Mac Sierra OS X (10.12) or higher BlackVue Web Viewer * Chrome 71 or higher, Safari 13.0 or higher
Application: BlackVue Application (Android 4.4.2 or higher, iOS 9.0 or higher)
Bluetooth: Built-in (V2.1+EDR/4.2)
LTE: External via Connectivity Module CM100LTE (optional)
18-month warranty applies to all BlackVue dashcams and Cellink batteries with product online registration. The default memory card that comes with the dashcam is covered by a 6-month warranty. Terms and conditions apply.
