The perfect 2 channel dashcam for trucks & heavy vehicles, the external waterproof rear cam with embedded IR lights is ideal for most large vehicles.
Features & Specs
BlackVue DR770X-2CH TRUCK- The Perfect Dashcam for Trucks and Heavy Vehicles
The external waterproof rear cam with embedded IR lights and up to 15m (49ft) coaxial cable is ideal for most large vehicles. Catch detailed footage of the front surroundings of your vehicle at 1080p Full HD 60FPS and rear at 1080p Full HD 30FPS. The front and rear cameras both use cutting-edge Sony Starvis sensors, with rear camera being augmented by 6 IR LEDs for clarity in total darkness.
Front camera with Full HD (1920 x1080) @ 60FPS
Rear camera with Full HD (1920 x1080) @ 30FPS
Rear camera illumination 940nm 6 Infrared (IR) LEDS
2.1M Pixels front SONY Starvis image sensor with Night Vision
Support Parking Mode with Impact and Motion Detections, Time Lapse and Region-based Motion Detections
Support optional LTE Module for Cloud Connectivity
Support Native Parking Mode (hardwiring cable included)
Seamless Pairing features for effortless setup.
Touch sensors triggers manual recording depending on firmware settings.
New CPU with Image Signal Processing Tuning
In simple terms: the image looks better, especially at night and in high-contrast scenes where most cameras struggle to preserve detail in highlights and dark areas. Watch the image quality improvement comparing DR750X Plus and DR770X. (DR770X is the successor to DR750X Plus.)
Full HD Cloud Dashcams
BlackVue TRUCK Dual-Channel Dashcams to Secure Trucks and Heavy Vehicles The BlackVue TRUCK Plus model...
BlackVue DR770X-2CH TRUCK- The Perfect Dashcam for Trucks and Heavy Vehicles
The external waterproof rear cam with embedded IR lights and up to 15m (49ft) coaxial cable is ideal for most large vehicles. Catch detailed footage of the front surroundings of your vehicle at 1080p Full HD 60FPS and rear at 1080p Full HD 30FPS. The front and rear cameras both use cutting-edge Sony Starvis sensors, with rear camera being augmented by 6 IR LEDs for clarity in total darkness.
Front camera with Full HD (1920 x1080) @ 60FPS
Rear camera with Full HD (1920 x1080) @ 30FPS
Rear camera illumination 940nm 6 Infrared (IR) LEDS
2.1M Pixels front SONY Starvis image sensor with Night Vision
Support Parking Mode with Impact and Motion Detections, Time Lapse and Region-based Motion Detections
Support optional LTE Module for Cloud Connectivity
Support Native Parking Mode (hardwiring cable included)
Seamless Pairing features for effortless setup.
Touch sensors triggers manual recording depending on firmware settings.
New CPU with Image Signal Processing Tuning
In simple terms: the image looks better, especially at night and in high-contrast scenes where most cameras struggle to preserve detail in highlights and dark areas. Watch the image quality improvement comparing DR750X Plus and DR770X. (DR770X is the successor to DR750X Plus.)
Full HD Cloud Dashcams
BlackVue TRUCK Dual-Channel Dashcams to Secure Trucks and Heavy Vehicles The BlackVue TRUCK Plus models are ideal to secure most large commercial trucks. The waterproof infrared rear camera connects to the front unit via a 15m (49ft) video cable. This allows to monitor not only the road behind, but also cargo loading and unloading operations. ​Let your BlackVue protect your assets with its native Parking Mode support (hardwiring cable included). With the free BlackVue Cloud service, check on your vehicle from anywhere, anytime.
​​NEW STANDARD IN CONNECTED DASHCAM DASHCAMS WITHOUT COMPROMISE
Improved Sony STARVIS Image sensors
Front cam: 2.1 megapixels STARVIS™ sensor / Full HD (1920×1080 @60FPS) / View angle: 139 degrees.
Rear waterproof IR cam (DR770X-2CH): 2.1 megapixels STARVIS™ sensor / Full HD (1920×1080 @30FPS) / View angle: 139 degrees.
Smooth video with reduced motion blur @60FPS front camera.
With the free BlackVue Cloud add-on service, check on your car anytime, anywhere.

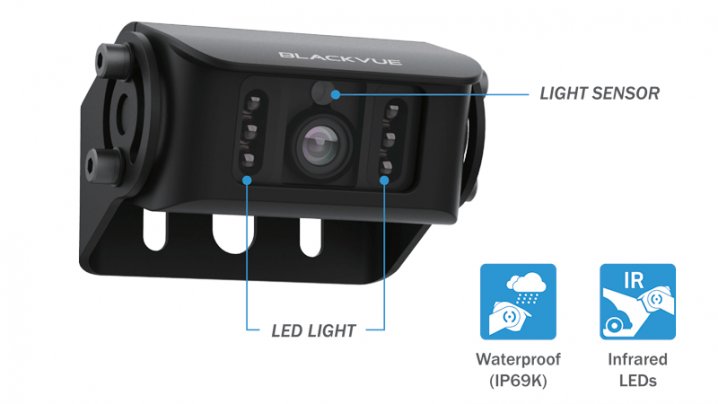

Infrared External Rear Camera
With Rugged Metal Waterproof Casing With its metal waterproof casing the rear camera of the DR750X-2CH TRUCK Plus is built to withstand most weather conditions. It is designed to be installed at the rear of truck or heavy vehicles. We recommend to secure it in place on a flat surface using the provided screws. The luminosity sensor detects ambient brightness, activating automatically the six IR lights to help identify vehicles and objects even in the dark.

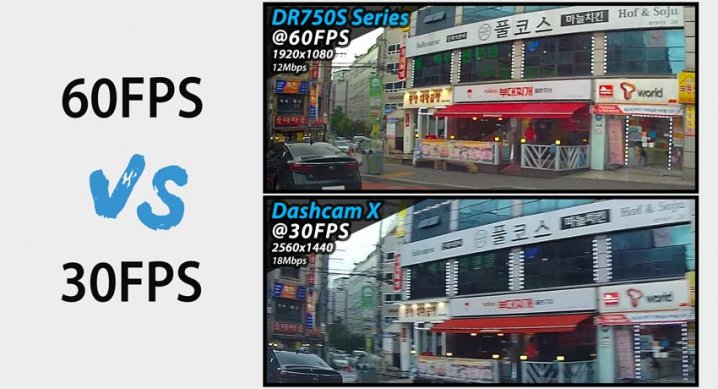

High Frame Rate for Extra Fluidity
THE ADVANTAGE OF 60FPS VIDEO CAPTURE ​ The front-facing camera records extra fluid videos at 60 frames per second, keeping all details sharp even in fast action. With 60fps, motion blur is much reduced compared to 30fps. That means your BlackVue can better capture details–like license plates–even in fast-moving objects. ​ Note 1: the higher the image quality setting, the higher the bitrate and the bigger the file size. A bigger size will increase the time necessary to transfer a video file over Wi-Fi. Note 2: Remote Live View using BlackVue Over the Cloud is not affected by the image quality and framerate settings.

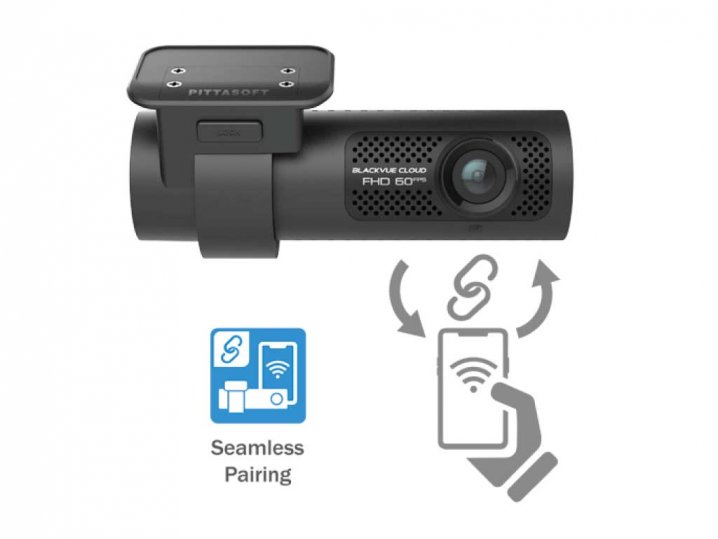

Seamless Pairing
Effortless setup ​Simply connect to your dashcam without leaving the BlackVue App. With Seamless Pairing, setting up your dashcam is a breeze. Just power the dashcam, then easily connect from the BlackVue app and follow the simple instructions. Whether you want to browse your dashcam’s files and settings or connect your dashcam to the Cloud, Seamless Pairing makes everything easy and intuitive.

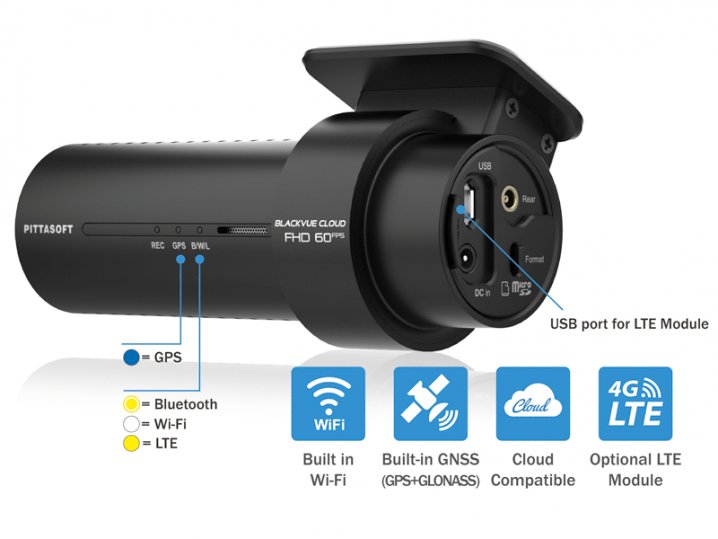

GPS, WIFI and Optional LTE
GPS: visualize the location of your vehicle on the map during video playback and overlay speed on videos (can be hidden in settings). Wi-Fi: lets you connect to your BlackVue with a smartphone or tablet. Wi-Fi also lets your BlackVue connect to BlackVue Cloud via any home or mobile Wi-Fi hotspot (router). ​LTE: connect the optional LTE connectivity module* via the USB port for the best Cloud experience. (*) SIM card not included.

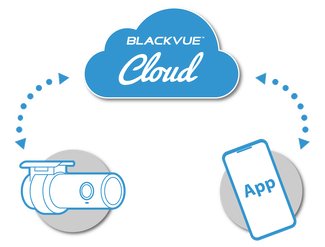

BlackVue Cloud
Connect to your BlackVue anytime, from anywhere in the world with free Cloud Service.
Enjoy remote Live View and Event Push Notifications to your phone.
Back up important videos to the Cloud remotely.
GPS Tracking
Play and download videos from your dashcam’s memory or the Cloud from anywhere.​​
Enjoy Two-way Voice Communication with the driver from the app through the BlackVue’s integrated speaker and mic.
Get instant Event Push Notification to your phone upon an impact detection when you are away.

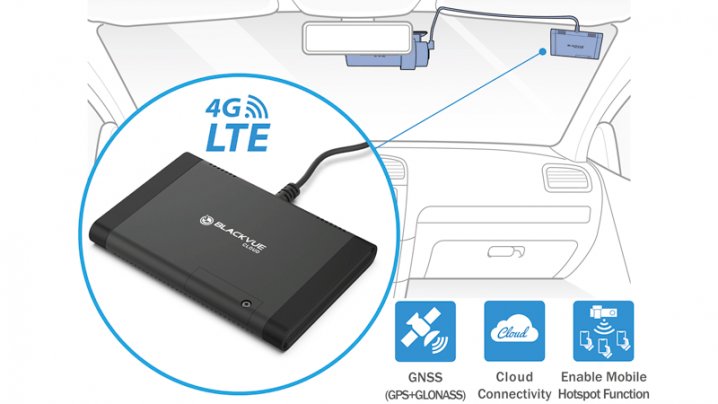

LTE Connectivity Module (optional)
The CM100LTE provides easy 4G LTE connectivity to enable BlackVue Cloud features. All you need is a valid Nano SIM card. The CM100LTE is powered and connects via the USB port of your dashcam. When connected to the CM100LTE, BlackVue DR770X Series can serve as a mobile hotspot providing wireless Internet access to up to five devices (smartphone, tablet, etc.).
Note: DR770X series is also compatible with Car WiFi Kit or other external WiFi Hotspot for cloud connectivity.

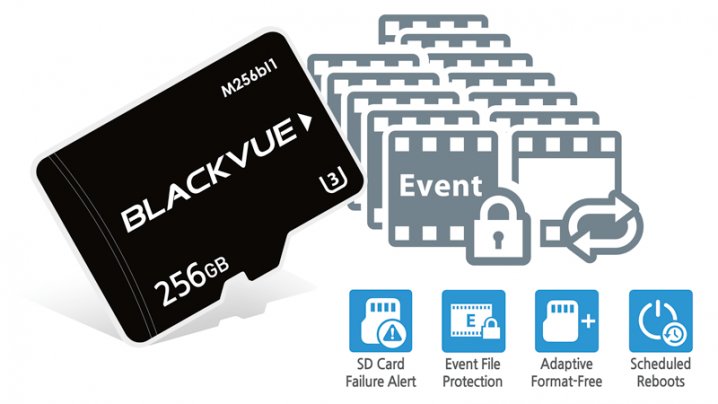

Optimised Files Management
​IMPROVED SECURITY AND RELIABILITY
Event Files Overwrite Protection: Dashcams record in a loop, overwriting older files when the memory is full. DR770X Series with optional setting to preserve the last 50 Event videos at all times so you always have time to retrieve important footage without it getting overwritten.
Adaptive Format-Free File Management: This BlackVue-developed file system improves recording stability and requires less microSD card formatting.
SD Card Failure Alert: your BlackVue detects as soon as the microSD card fails and warns you with a “Please check SD card” voice alert.
​High Capacity Memory Storage up to 256GB
Scheduled Reboots (see Parking Mode section below)​
Built-in Speaker, Impact Sensor and Motion Detection
Automatically tags important files While driving, your BlackVue detects impacts and sudden changes in speed. While parked, it also detects movements*. Use the filters in the BlackVue App and Viewer All videos are tagged (Normal, Event, Parking Mode motion or time lapse), so that you can easily find the relevant ones in the BlackVue Viewer for Windows and Mac OS or the BlackVue App for Android and iOS.
* For Parking Mode, the dashcam needs to be hardwired with power from your car battery or an optional Cellink Battery pack.
Sleek Interface
EASIER OPERATION

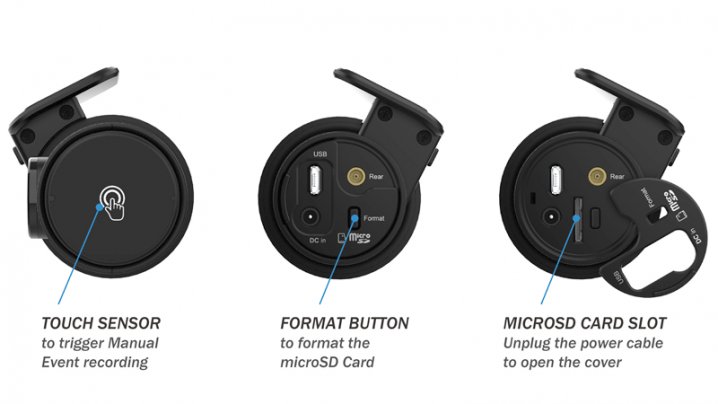

Touch sensor Tap the touch sensor to trigger Manual Event videos Format button Hold to format the microSD card. Secure microSD card access Unplug the DC in power connector and pop the cover open to reveal the microSD card slot.

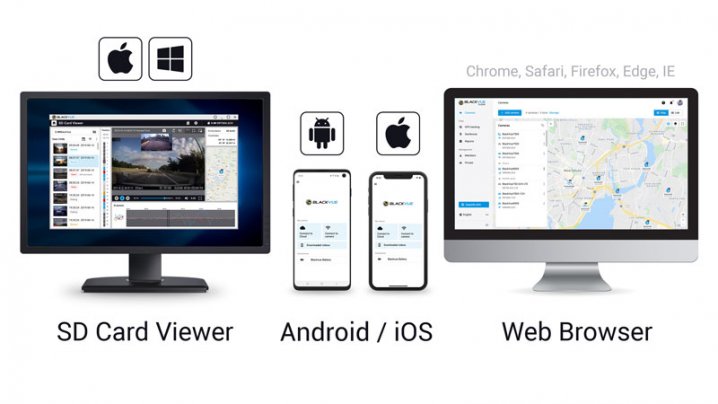

Intuitive BlackVue App and Viewer
EASILY MANAGE YOUR VIDEO FILES Easily change your BlackVue configuration settings and browse your videos on your mobile or computer.
With the BlackVue App, connect to your BlackVue to access files and check real-time Live View for easy setup of your dashcam.
With the SD Card Viewer, connect your dashcam’s microSD card to your computer to view and backup footage in bulk, as well as export clips, remove sound, etc.
The Web Viewer lets you manage your Cloud-connected dashcams from any web browser at blackvuecloud.com.

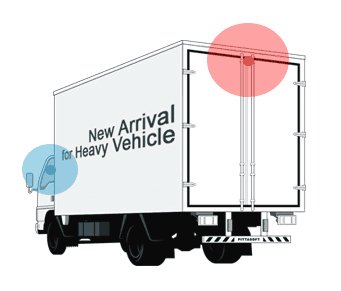

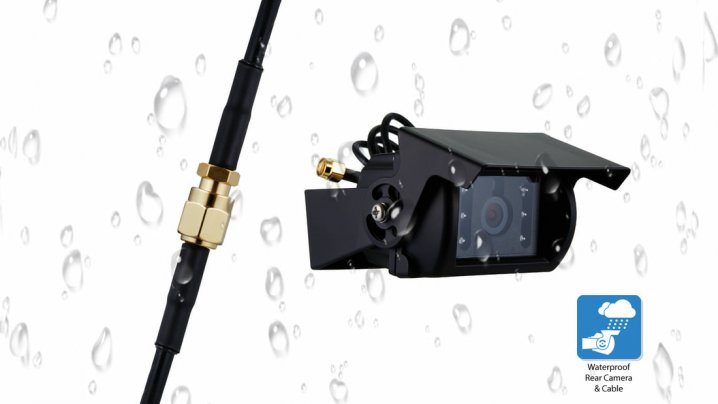

Reliable Waterproof Coaxial Cable
WATERPROOF FOR BOTH REAR CAMERA AND COAXIAL CABLE​
​The 15m (and optional 20m) high-quality waterproof coaxial cable connects the front and rear cameras.
The waterproof rear camera and the coaxial cable are screwed together to provide tight and water-resistant connection.
​Its length makes it ideal for trucks and trailers and guarantees a pristine image even over long distance.

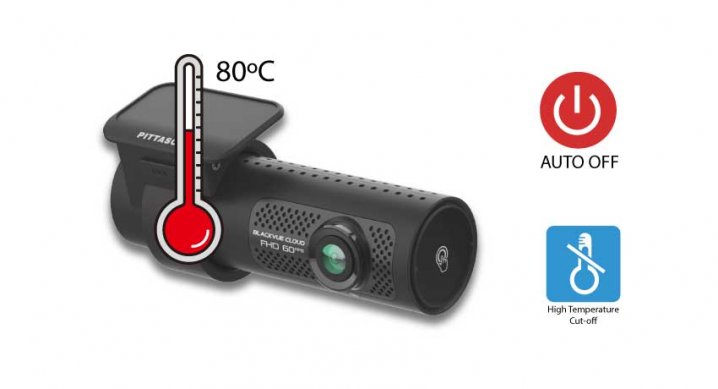

High-Temperature Cut-off
HIGHER HEAT ENDURANCE​
​Endures higher operation temperature than earlier models
Automatically cuts off the operation when temperature reaches 80 degree Celsius. Automatically restart when temperature cools down to 55 degree Celsius. ​
Protects the product from the harm of over temperature.

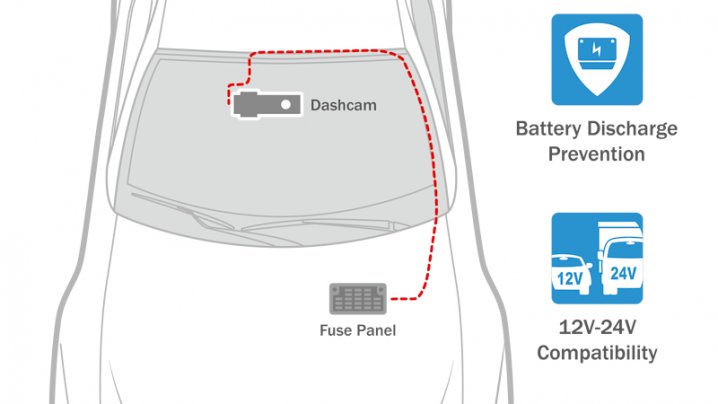

Native Parking Mode
Hardwiring cable included DR770X Series can be hardwired to your vehicle’s fuse panel for Parking Mode, without requiring optional accessories. The dashcam will switch to Parking Mode automatically when vehicle ignition is turned off. Voltage cutoff and timer can be set in the BlackVue App. Parking Mode accessories support DR770X Series is also compatible with all Parking Mode Kits and Batteries.
Disclaimer: Vehicle battery life and performance maybe affected which lead to premature failure especially with frequent short driving. Not compatible with some continental vehicles which may triggers dashboard error. Not recommended for most new vehicles under warranty due to agent restrictions.
Intelligent Parking Mode Monitoring

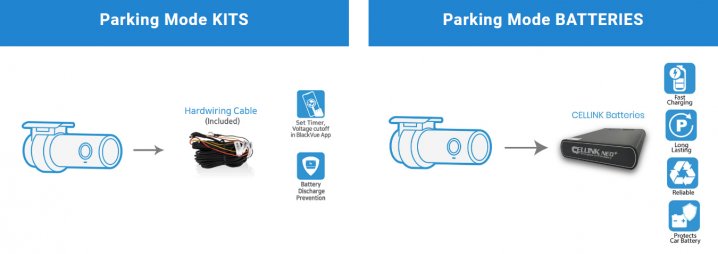

Peace of mind with extra security when you are away from your car ​ ​With Parking Mode Kits or Batteries, you can rest easy, knowing that your car is being monitored while you are away. BlackVue automatically switches to Parking Mode to monitor your parked vehicle. ​ ​Thanks to video buffer, the few seconds leading to triggering events are also recorded.
​​Motions recorded by the image sensor (marked “P” in the file list).
Impacts detected by the accelerometer/G-sensor (marked “E” in the file list).

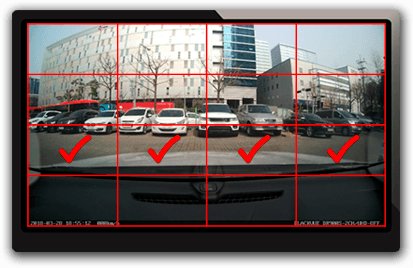

Choose detection regions to reduce the risk of triggering unwanted motion recordings due to trees swaying in the wind, far-away moving objects, etc.

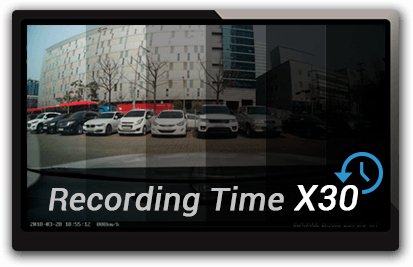

Continuously records at 1FPS (one frame per second). Videos are played back at 30FPS. 1-minute Time lapse Parking Mode video = 30 minutes real time coverage. Cover a period of more than 27 hours on a 16GB microSD card front and rear at the highest (Extreme) quality setting. When an impact is detected, the dashcam creates a buffered Event video.
​Note: In Time Lapse mode, only the impact Event videos include buffering. In Motion & Impact Detection mode, both motion and impact videos include buffering. Learn more about Time Lapse and Motion & Impact Detection here >. ​ And also:
Parking Mode Event Voice Notifications: ​ Upon exiting Parking Mode, your BlackVue tells you if Events were recorded when you were away from your car, so you can check right away the Event videos on the BlackVue App. ​
Push Notification: ​ ​If your dashcam is connected to the Cloud Service, you will receive instant push notification to your smartphone if there's an impact detected when you're away from your car.
Super stealthy: ​ Completely turn off all LED indicators in Parking Mode. Only the recording LED indicator facing the interior of the vehicle will blink when motion or impact is detected.
Scheduled Reboot: ​ Schedule a daily automatic reboot (optional—by default at night) to minimize potential errors. Reboots happen only if the dashcam is in Parking Mode and not writing data to the microSD card. This means no Normal driving, Event, or Parking Mode recording can be interrupted by a scheduled reboot.
Technical Specifications:
Model Name: DR770X-2CH TRUCK
Type: 2 Channels (front and rear camera)
Highlights: Full HD (Front + External Waterproof IR Cam), Cloud, Wi-Fi, GPS, Dual Sony Sensors, External LTE Module (Optional)
Product Dimensions: Front: Black / Width 118.5mm x Height 36mm / 104g Rear: Black / Width 65mm x Height 36mm / 157g
Rear Camera Connection: Waterproof coaxial cable
Memory support: MicroSD card up to 256GB
Recording Mode: • Normal recording, • Event recording (when impact is detected in normal and parking mode), • Manual recording • Parking recording (when motion is detected). * When using Hardwiring Power Cable, ACC+ will trigger parking mode. When using other methods, G-sensor will trigger parking mode.
Parking Mode: Yes (with 3-wire hardwiring cable included) using power from car battery or optional Cellink Battery is fully recommended.
Parking Mode Event Voice Notifications: Yes
Imaging Sensor: Front: Sony STARVIS CMOS Sensor (Approx. 2.1MP) Rear: Sony STARVIS CMOS Sensor (Approx. 2.1MP)
LED Indicators: Front: Recording LED, GPS/BT LED, LTE/Wi-Fi LED, Front Security LED, Proximity Sensing indicator LED Rear: Rear Security LED
Button: Format Button: Press and hold format button for 5 seconds, and after a beep, release the button. Then, press again and hold for 5 seconds and release the button after a beep to format the microSD card. Touch Sensor: Pressing the touch sensor triggers manual recording depending on the firmware settings.
Operation Temperature: -20℃ – 80℃
Storage Temperature: -20℃ – 80℃
High Temp Cut Off: Approx. 80℃
Backup Battery: Built-in supercapacitor
Input Power: DC 12V – 24V
Power Consumption Hour: 4.5W (Normal Mode) 3.6 W (Parking Mode) * Approx. 60mA increase in current when IR LEDs are ON. * Actual power consumption may vary depending on use conditions and environment.
18-month warranty applies to all BlackVue dashcams and Cellink batteries with product online registration. The default memory card that comes with the dashcam is covered by a 6-month warranty. Terms and conditions apply.
