Dual-channel 4K UHD (front) & Full HD (rear) cloud dashcam with an 8-megapixel CMOS sensor allows you to clearly see finer details even from a further distance.
Features & Specs

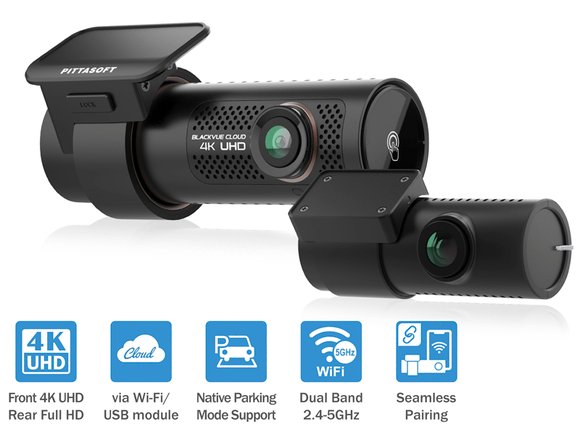

BlackVue DR970X-2CH - Redefining the dashcam
4K UHD Dual-Channel Cloud Dashcam
The DR970X Series front camera produces crisper 4K videos than its predecessors. The difference is actually quite noticeable when looking at side-by-side footage. You can clearly see finer details even from a further distance.
The Full HD rear camera is also better than past models at capturing videos in low light and has better dynamic range overall.
Front camera with 4K Ultra High Definition (3840 x 2160 @30FPS)
Rear camera with Full HD (1920 x1080 @30FPS)
8M Pixels front image sensor (4 times more pixels than Full HD)
Support Parking Mode with Impact and Motion Detections, Time Lapse and Region-based Motion Detections
Support optional LTE module for Cloud Connectivity
Support Native Parking Mode (hardwiring cable included)
New CPU with Image Signal Processing Tuning
In simple terms: the image looks better, especially at night and in high-contrast scenes where most cameras struggle to preserve detail in highlights and dark areas.

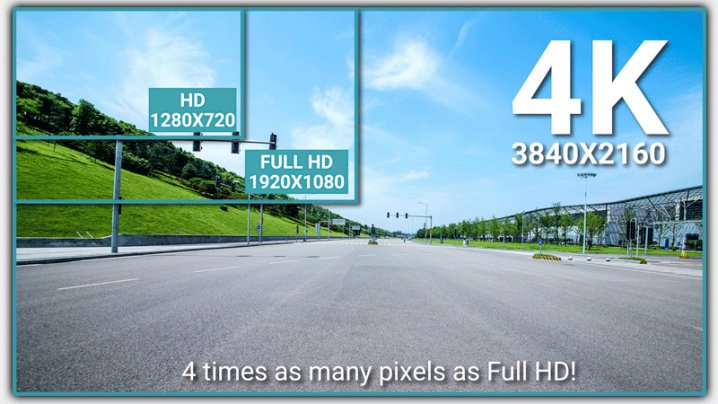

Discover the 4K Difference
4K in a dashcam is not a gimmick. It is a game-changer. It is not about playing videos on a giant screen–although you could do that too. It’s about providing video proof. A dashcam is only as good as its ability to capture crucial details–usually license plate numbers. The 8-megapixel 4K UHD sensor does just that by capturing 4 times as man...
The DR970X Series front camera produces crisper 4K videos than its predecessors. The difference is actually quite noticeable when looking at side-by-side footage. You can clearly see finer details even from a further distance.
The Full HD rear camera is also better than past models at capturing videos in low light and has better dynamic range overall.
Front camera with 4K Ultra High Definition (3840 x 2160 @30FPS)
Rear camera with Full HD (1920 x1080 @30FPS)
8M Pixels front image sensor (4 times more pixels than Full HD)
Support Parking Mode with Impact and Motion Detections, Time Lapse and Region-based Motion Detections
Support optional LTE module for Cloud Connectivity
Support Native Parking Mode (hardwiring cable included)
New CPU with Image Signal Processing Tuning
In simple terms: the image looks better, especially at night and in high-contrast scenes where most cameras struggle to preserve detail in highlights and dark areas.
Discover the 4K Difference
4K in a dashcam is not a gimmick. It is a game-changer. It is not about playing videos on a giant screen–although you could do that too. It’s about providing video proof. A dashcam is only as good as its ability to capture crucial details–usually license plate numbers. The 8-megapixel 4K UHD sensor does just that by capturing 4 times as many pixels as in Full HD. And with its fast shutter speed, details are frozen in place. Just pause and zoom in.

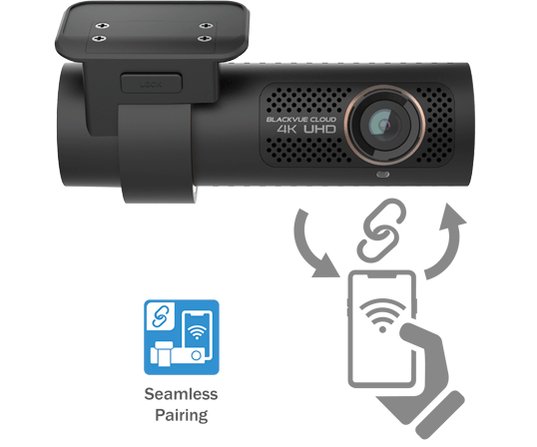

Seamless Pairing
Effortless setup
Simply connect to your dashcam without leaving the BlackVue App. With Seamless Pairing, setting up your dashcam is a breeze. Just power the dashcam, then easily connect from the BlackVue app and follow the simple instructions. Whether you want to browse your dashcam’s files and settings or connect your dashcam to the Cloud, Seamless Pairing makes everything easy and intuitive.
GPS: visualize the location of your vehicle on the map during video playback and overlay speed on videos (can be hidden in settings). Wi-Fi: lets you connect to your BlackVue with a smartphone or tablet. Wi-Fi also lets your BlackVue connect to BlackVue Cloud via any home or mobile Wi-Fi hotspot (router). LTE: connect the optional LTE connectivity module* via the USB port for the best Cloud experience. (*) SIM card not included.

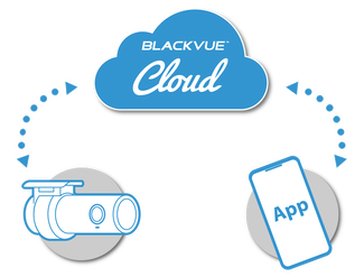

BlackVue Cloud
Free Cloud Service - Me and My Car Connected
Enjoy remote Live View and Event Push Notifications to your phone.
Back up important videos to the Cloud remotely.
GPS Tracking
Play and download videos from your dashcam’s memory or the Cloud from anywhere.
Enjoy Two-way Voice Communication with the driver from the app through the BlackVue’s integrated speaker and mic.
Get instant Event Push Notification to your phone upon an impact detection when you are away. Watch video >

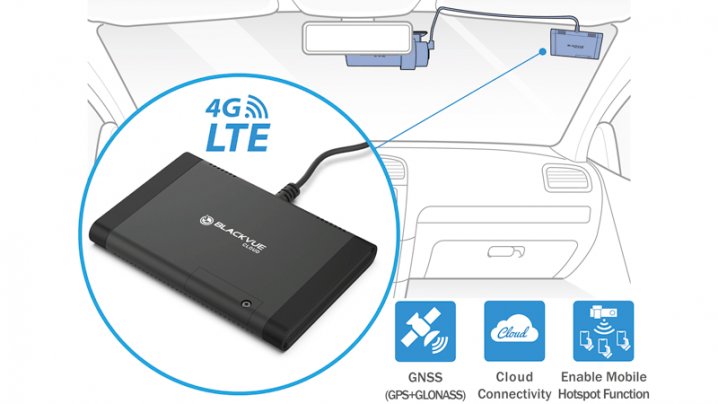

LTE Connectivity Module (optional)

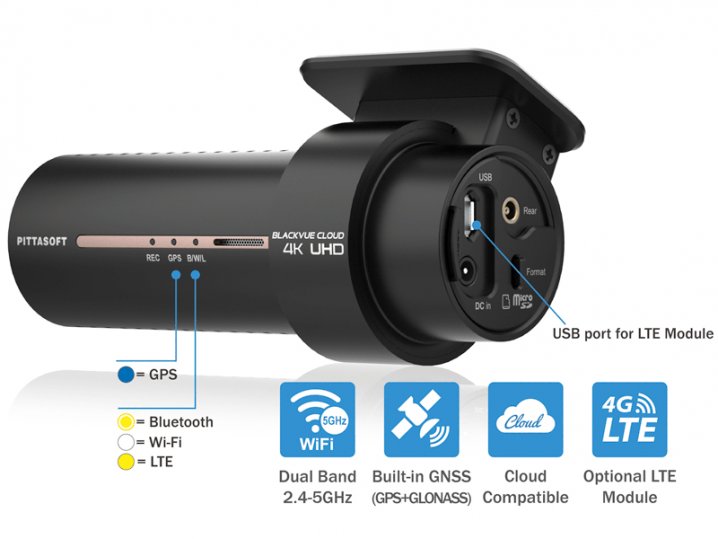

The CM100LTE provides easy 4G LTE connectivity to enable BlackVue Cloud features. All you need is a valid Nano SIM card. The CM100LTE is powered and connects via the USB port of your dashcam.
When connected to the CM100LTE, BlackVue DR770X Series can serve as a mobile hotspot providing wireless Internet access to up to five devices (smartphone, tablet, etc.).
Note: DR770X series is also compatible with Car WiFi Kit or other external WiFi Hotspot for cloud connectivity.

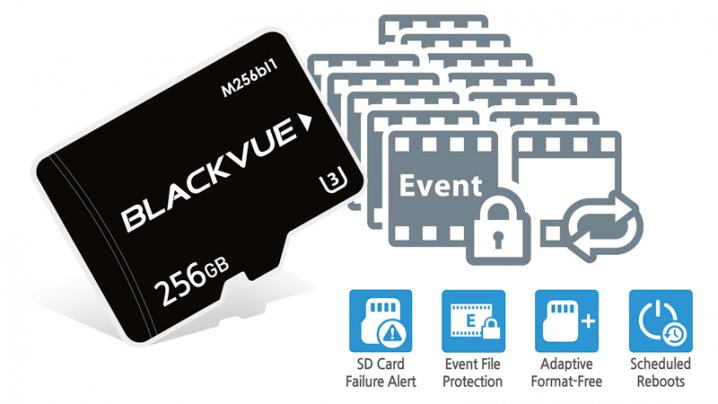

Optimised Files Management
IMPROVED SECURITY AND RELIABILITY
Event Files Overwrite Protection: Dashcams record in a loop, overwriting older files when the memory is full. DR770X Series with optional setting to preserve the last 50 Event videos at all times so you always have time to retrieve important footage without it getting overwritten.
Adaptive Format-Free File Management: This BlackVue-developed file system improves recording stability and requires less microSD card formatting.
SD Card Failure Alert: your BlackVue detects as soon as the microSD card fails and warns you with a “Please check SD card” voice alert.
High Capacity Memory Storage up to 256GB
Scheduled Reboots (see Parking Mode section below)

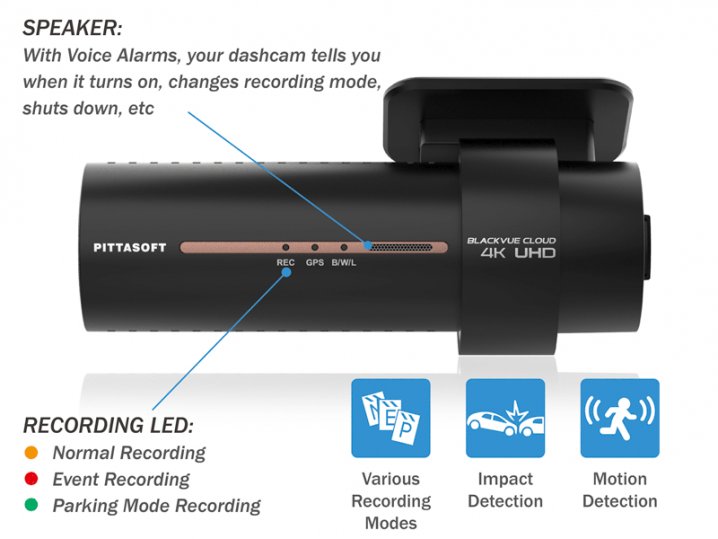

Built-in Speaker, Impact Sensor and Motion Detection
Speaker: your dashcam tells you when it turns on, shuts down or detects errors. Accelerometer: detects impacts to trigger Event recording. Triggers Parking Mode* when stationary for 5 minutes. Automatically tags video files: while driving, the built-in accelerometer (G-sensor) detects impacts and sudden changes in speed. While parked, your BlackVue also detects visual movements around your vehicles. Use the filters in the BlackVue App and Viewer: BlackVue tags all videos (Normal, Event, Parking Mode, etc.), so that you can filter them and quickly find the ones you need in the BlackVue Viewer (Windows, Mac OS, Web) or the BlackVue App (Android, iOS).
* For Parking Mode, the dashcam needs to be hardwired with power from your car battery or an optional Cellink Battery pack.

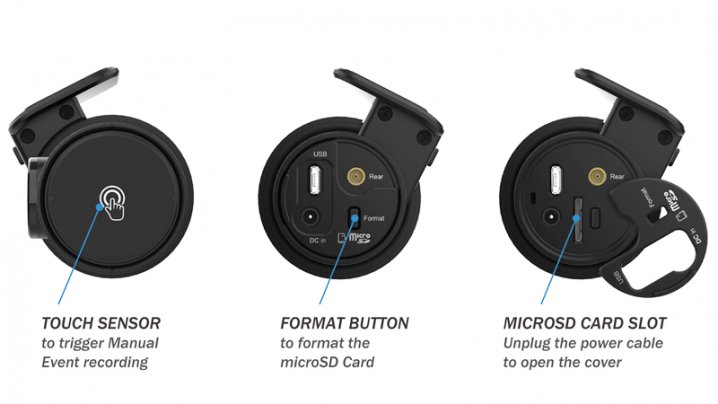

Sleek Interface
Touch sensor Tap the touch sensor to trigger Manual Event videos. Secure microSD card access Unplug the DC in power connector and pop the cover open to reveal the microSD card slot.

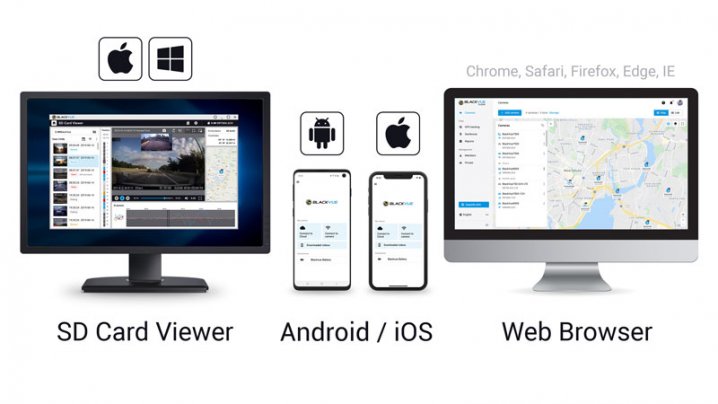

Intuitive BlackVue App and Viewer
EASILY MANAGE YOUR VIDEO FILES Easily change your BlackVue configuration settings and browse your videos on your mobile or computer.
With the BlackVue App, connect to your BlackVue to access files and check real-time Live View for easy setup of your dashcam.
With the SD Card Viewer, connect your dashcam’s microSD card to your computer to view and backup footage in bulk, as well as export clips, remove sound, etc.
The Web Viewer lets you manage your Cloud-connected dashcams from any web browser at blackvuecloud.com.

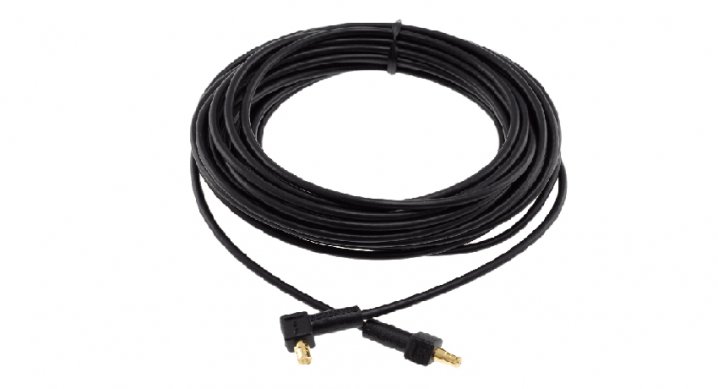

Reliable Coaxial Cable
Connects front and rear camera
Safer and faster data transmission comparing with USB or analog cable
Minimise noise for better image quality
Default cable length of 6 meters is sufficient for most cars, vans, SUVs and MPVs. Optional cable length of 10 or 15 meters is available upon request if needed.

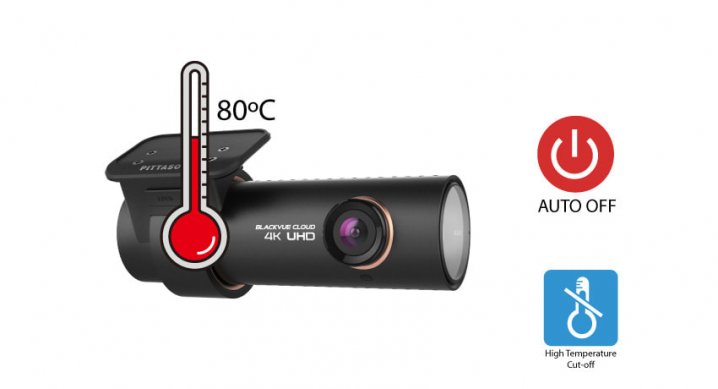

High-Temperature Cut-off HIGHER HEAT ENDURANCE
Endures higher operation temperature than earlier models
Automatically cuts off the operation when temperature reaches 70 degree Celsius. Automatically restart when temperature cools down to 55 degree Celsius.
Protects the product from the harm of over temperature.
Native Parking Mode

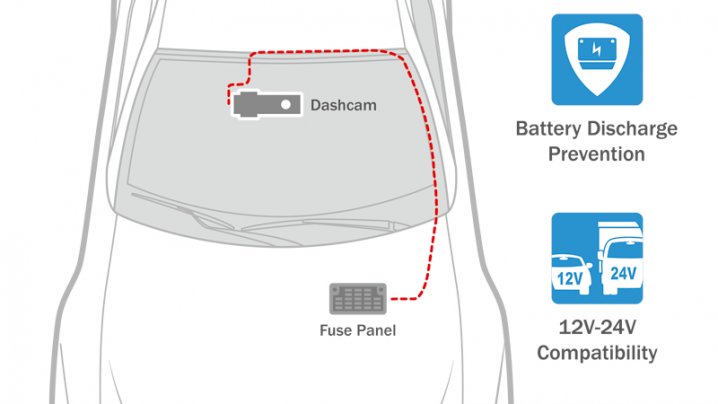

Hardwiring cable included DR970X Series can be hardwired to your vehicle’s fuse panel for Parking Mode, without requiring optional accessories. The dashcam will switch to Parking Mode automatically when vehicle ignition is turned off. Voltage cutoff and timer can be set in the BlackVue App. Parking Mode accessories support DR970X Series is also compatible with all Parking Mode Kits and Batteries. Disclaimer: Vehicle battery life and performance maybe affected which lead to premature failure especially with frequent short driving. Not compatible with some continental vehicles which may triggers dashboard error. Not recommended for most new vehicles under warranty due to agent restrictions.
Intelligent Parking Mode Monitoring

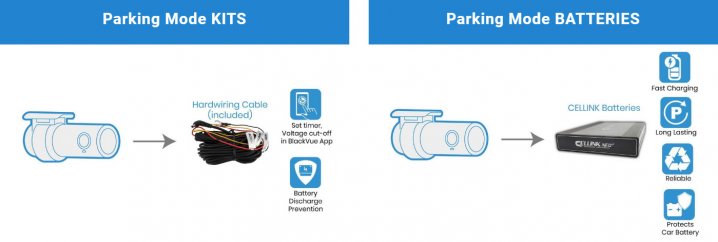

Peace of mind with extra security when you are away from your car With included hardwiring kit or optional Cellink batteries, you can rest easy, knowing that your car is being monitored while you are away. BlackVue automatically switches to Parking Mode to monitor your parked vehicle. Thanks to video buffer, the few seconds leading to triggering events are also recorded. DR970X series supports two Parking Mode options:
Note: In Time Lapse mode, only the impact Event videos include buffering. In Motion & Impact Detection mode, both motion and impact videos include buffering. Learn more about Time Lapse and Motion & Impact Detection here >.
Motions recorded by the image sensor (marked “P” in the file list).
Impacts detected by the accelerometer/G-sensor (marked “E” in the file list).

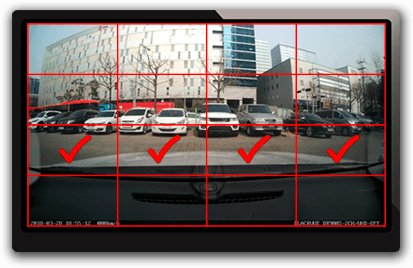

Choose detection regions to reduce the risk of triggering unwanted motion recordings due to trees swaying in the wind, far-away moving objects, etc.

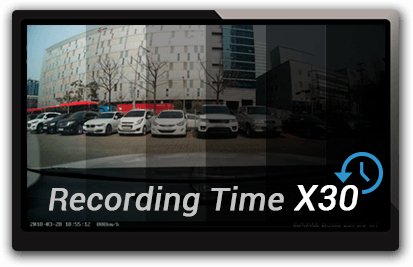

Continuously records at 1FPS (one frame per second). Videos are played back at 30FPS. 1-minute Time lapse Parking Mode video = 30 minutes real time coverage. Cover a period of more than 27 hours on a 16GB microSD card front and rear at the highest (Extreme) quality setting. When an impact is detected, the dashcam creates a buffered Event video.
And also:
Parking Mode Event Voice Notifications: Upon exiting Parking Mode, your BlackVue tells you if Events were recorded when you were away from your car, so you can check right away the Event videos on the BlackVue App.
Push Notification: If your dashcam is connected to the Cloud Service, you will receive instant push notification to your smartphone if there's an impact detected when you're away from your car.
Super stealthy: Completely turn off all LED indicators in Parking Mode. Only the recording LED indicator facing the interior of the vehicle will blink when motion or impact is detected.
Scheduled Reboot: Schedule a daily automatic reboot (optional—by default at night) to minimize potential errors. Reboots happen only if the dashcam is in Parking Mode and not writing data to the microSD card. This means no Normal driving, Event, or Parking Mode recording can be interrupted by a scheduled reboot.
Technical Specifications:
Model Name
DR970X-2CH
Type
2 Channels (front and rear camera)
Highlights
4K UHD (Front) + Full HD (Rear), 2.4-5GHz Wi-Fi, Cloud, External LTE Module (Optional)
Product Dimensions
Front: W 118.5 mm x H 36 mm /105 g Rear: W 67.4 mm x H 25 mm / 25 g
Rear Camera Connection
Coaxial cable
Memory support
MicroSD card up to 256GB
Recording Mode
• Normal recording, • Event recording (when impact is detected in normal and parking mode), • Manual recording • Parking recording (when motion is detected). * When using Hardwiring Power Cable, ACC+ will trigger parking mode. When using other methods, G-sensor will trigger parking mode.
Parking Mode
Yes (with 3-wire hardwiring cable included) using power from car battery or optional Cellink Battery is fully recommended.
Parking Mode Event Voice Notifications
Yes
Imaging Sensor
Front: 8-Megapixel CMOS Sensor Rear: Sony STARVIS™ CMOS Sensor (Approx.2.1 M Pixel)
Front: Recording LED, GPS/BT LED, LTE/Wi-Fi LED, Front Security LED, Proximity Sensing indicator LED Rear: Rear Security LED
Button
Format Button: Press and hold format button for 5 seconds, and after a beep, release the button. Then, press again and hold for 5 seconds and release the button after a beep to format the microSD card. Touch Sensor: Pressing the touch sensor triggers manual recording depending on the firmware settings.
Operation Temperature
-20℃ – 80℃
Storage Temperature
-20℃ – 80℃
High Temp Cut Off
Approx. 75℃
Backup Battery
Built-in supercapacitor
Input Power
DC 12V – 24V
Power Consumption Hour
5.4W (Normal Mode) 4.2W (Parking Mode) * Actual power consumption may vary depending on use conditions and environment.
18-month warranty applies to all BlackVue dashcams and Cellink batteries with product online registration. The default memory card that comes with the dashcam is covered by a 6-month warranty. Terms and conditions apply.
Latest Reviews

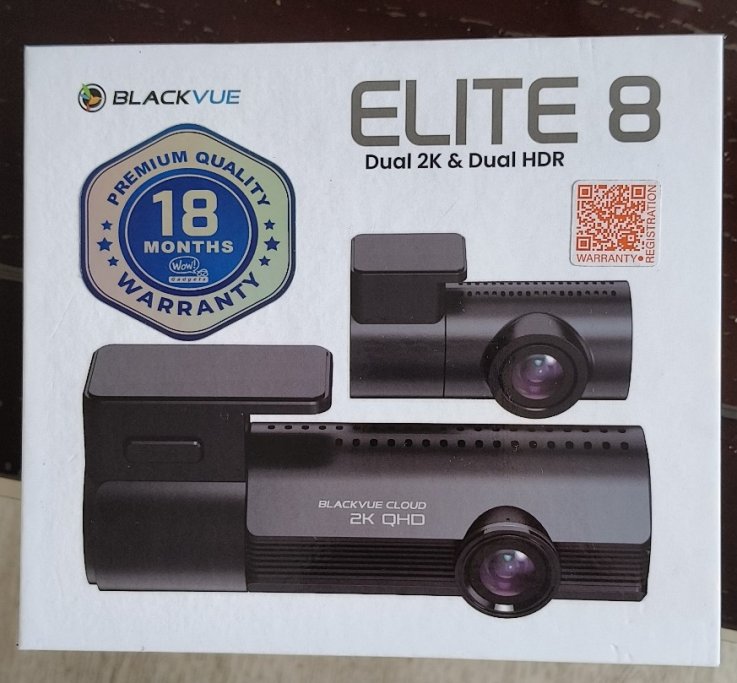

Blackvue Elite 8
