The DR770X Box Series is a triple-channel dash cam with BlackVue Cloud connectivity. Easy-to-hide, lock-protected "Box" recording unit.
Features & Specs

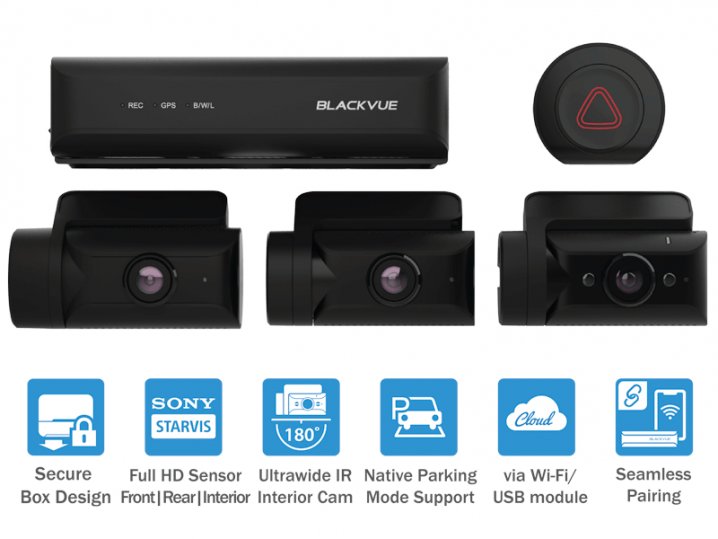

BlackVue DR770X BOX - A Triple-Camera Cloud-Compatible Dash Cam With Separate Secure Recording Unit
3-CHANNEL CLOUD DASHCAMS

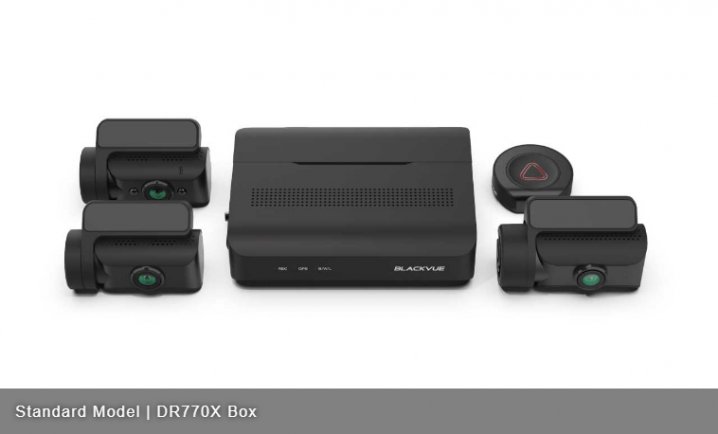

The DR770X Box is a triple-channel dash cam with BlackVue Cloud connectivity.
The compact front, interior and rear cameras connect via coaxial video cable to the lock-protected “Box” recording unit, which can be stowed away in a glove compartment for maximum stealth and security.
All cameras use Full HD Sony STARVIS image sensors for best image quality under any light, and the interior camera can record even in full darkness with its infrared LEDs.
Wireless “SOS” button included to trigger Manual Event recordings. Native Parking Mode support via included hardwiring cable.
View and download videos easily with the BlackVue App. Cloud support via Wi-Fi hotspot or optional LTE Connectivity module.
Front camera with Full HD (1920 x1080) @ 60FPS
Rear camera with Full HD (1920 x1080) @ 30FPS
Interior camera with Full HD (1920 x1080) @ 30FPS
Reduced motion blur with high frame rate @60FPS
2.1M Pixels front SONY Starvis image sensor with Night Vision
BlackVue DR770X BOX - A Triple-Camera Cloud-Compatible Dash Cam With Separate Secure Recording Unit
3-CHANNEL CLOUD DASHCAMS
The DR770X Box is a triple-channel dash cam with BlackVue Cloud connectivity.
The compact front, interior and rear cameras connect via coaxial video cable to the lock-protected “Box” recording unit, which can be stowed away in a glove compartment for maximum stealth and security.
All cameras use Full HD Sony STARVIS image sensors for best image quality under any light, and the interior camera can record even in full darkness with its infrared LEDs.
Wireless “SOS” button included to trigger Manual Event recordings. Native Parking Mode support via included hardwiring cable.
View and download videos easily with the BlackVue App. Cloud support via Wi-Fi hotspot or optional LTE Connectivity module.
Front camera with Full HD (1920 x1080) @ 60FPS
Rear camera with Full HD (1920 x1080) @ 30FPS
Interior camera with Full HD (1920 x1080) @ 30FPS
Reduced motion blur with high frame rate @60FPS
2.1M Pixels front SONY Starvis image sensor with Night Vision
Support Parking Mode with Impact and Motion Detections, Time Lapse and Region-based Motion Detections
Support optional LTE Module for Cloud Connectivity
Support Native Parking Mode (hardwiring cable included)
Seamless Pairing features for effortless setup.
Touch sensors triggers manual recording depending on firmware settings.
New CPU with Image Signal Processing Tuning
In simple terms: the image looks better, especially at night and in high-contrast scenes where most cameras struggle to preserve detail in highlights and dark areas. Watch the image quality improvement comparing DR750X Plus and DR770X. (DR770X is the successor to DR750X Plus.)
Three-Channel Cloud Dashcams
Great video night and day, inside and out
Front Cam: 2.1 megapixels STARVIS sensor / Full HD (1920×1080 @60FPS) / View angle: 139 degrees. Interior Cam: 2.1 megapixels Sony CMOS sensor with infrared LEDs / Full HD (1920×1080 @30FPS) / View angle: 180 degrees. Rear Cam: 2.1 megapixels STARVIS sensor / Full HD (1920×1080 @30FPS) / View angle: 139 degrees.

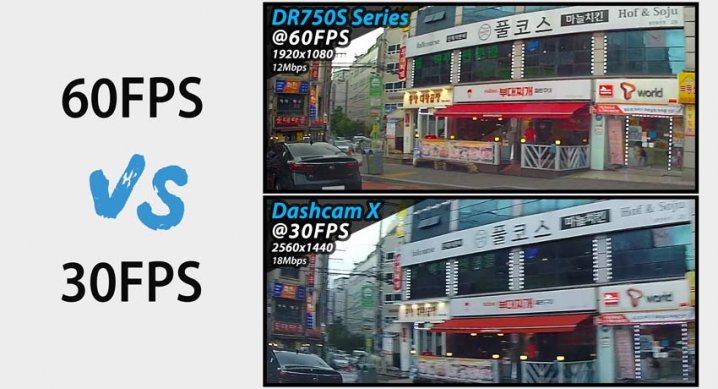

High Frame Rate for Extra Fluidity
THE ADVANTAGE OF 60FPS VIDEO CAPTURE The front-facing camera records extra fluid videos at 60 frames per second, keeping all details sharp even in fast action. With 60fps, motion blur is much reduced compared to 30fps. That means your BlackVue can better capture details–like license plates–even in fast-moving objects.
Note 1: the higher the image quality setting, the higher the bitrate and the bigger the file size. A bigger size will increase the time necessary to transfer a video file over Wi-Fi. Note 2: Remote Live View using BlackVue Over the Cloud is not affected by the image quality and framerate settings.

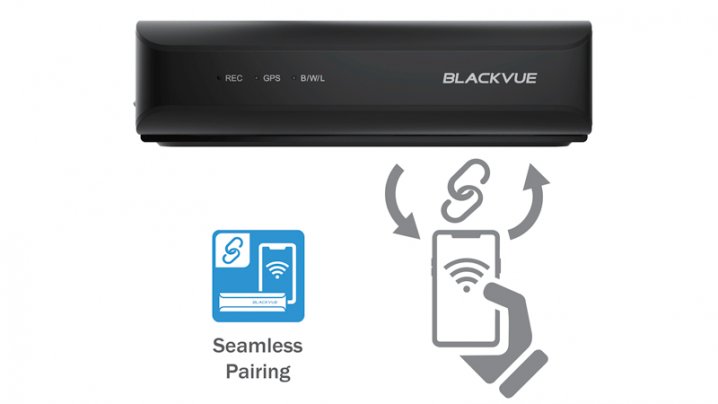

Seamless Pairing
Effortless setup Simply connect to your dashcam without leaving the BlackVue App. With Seamless Pairing, setting up your dashcam is a breeze. Just power the dashcam, then easily connect from the BlackVue app and follow the simple instructions. Whether you want to browse your dashcam’s files and settings or connect your dashcam to the Cloud, Seamless Pairing makes everything easy and intuitive.

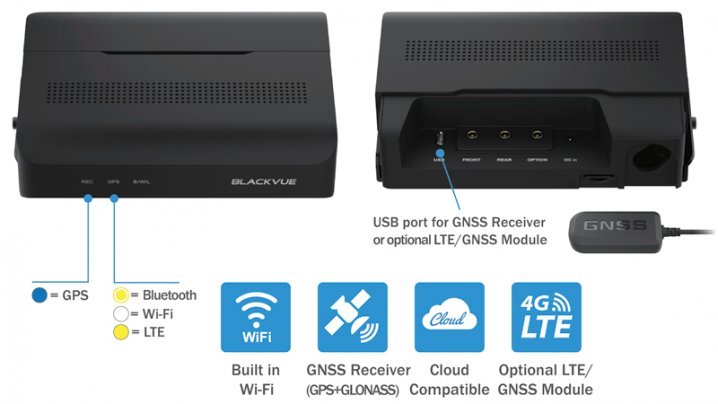

External GPS (included): embeds speed and location data in your videos. This allows you to track your vehicle in real-time via BlackVue Cloud and view its location on a map during playback in the BlackVue App or Viewer. Wi-Fi: connect to your BlackVue with a smartphone or tablet for fast file transfer. Wi-Fi also lets your BlackVue connect to BlackVue Cloud using a mobile Wi-Fi hotspot (router). LTE: connect the optional LTE connectivity module to the USB port for the best Cloud experience. (*) SIM card not included.

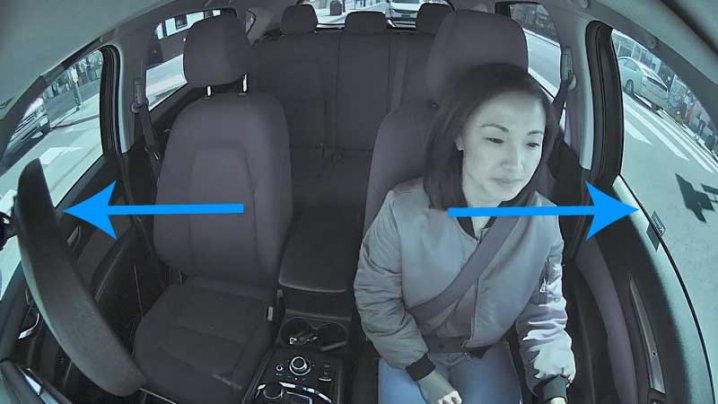

Ultrawide Infrared Interior Camera
The Infrared Camera secures the interior of your vehicle. The inconspicuous infrared LEDs automatically activate based on the ambient light. The camera’s spectacular clarity even in pitch black lighting conditions will procure peace of mind to taxi and rideshare drivers. With its ultrawide 180-degree view angle, the camera can capture both the driver-side and passenger-side windows at the same time in most vehicles. Using the BlackVue App or Viewer, you can further customize the way it operates.
180° Image Rotation (in settings) to accommodate your setup: if the image comes out upside down, just activate this feature and it will fix the image orientation.
Security LED ON/OFF (for stealth in Parking Mode)

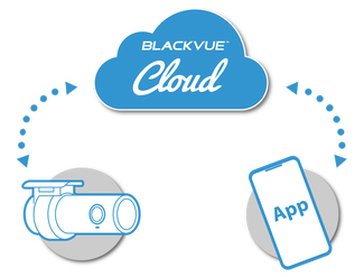

BlackVue Cloud
Free Cloud Service - Me and My Car Connected
Enjoy remote Live View and Event Push Notifications to your phone.
Back up important videos to the Cloud remotely.
GPS Tracking
Play and download videos from your dashcam’s memory or the Cloud from anywhere.
Enjoy Two-way Voice Communication with the driver from the app through the BlackVue’s integrated speaker and mic.
Get instant Event Push Notification to your phone upon an impact detection when you are away. Watch video >

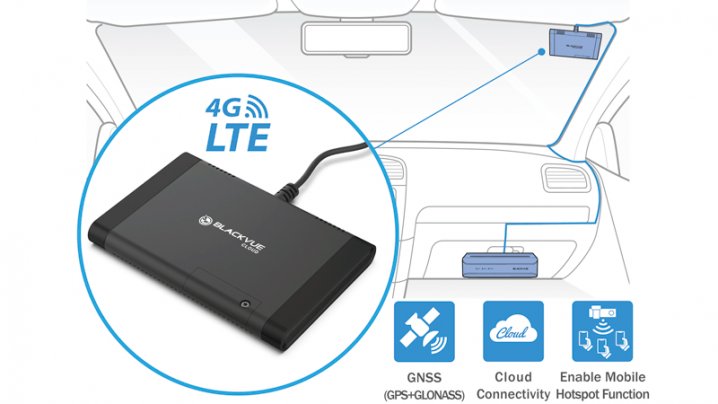

LTE Connectivity Module (optional)
The CM100LTE provides easy 4G LTE connectivity to enable BlackVue Cloud features. All you need is a valid Nano SIM card. The CM100LTE is powered and connects via the USB port of your dashcam. When connected to the CM100LTE, BlackVue DR770X Series can serve as a mobilehotspot providing wireless Internet access to up to five devices (smartphone, tablet, etc.). Note: DR770X series is also compatible with Car WiFi Kit or other external WiFi Hotspot for cloud connectivity.
Optimised Files Management
IMPROVED SECURITY AND RELIABILITY
Event Files Overwrite Protection: Dashcams record in a loop, overwriting older files when the memory is full. DR770X Box Series with optional setting to preserve the last 50 Event videos at all times so you always have time to retrieve important footage without it getting overwritten.
Adaptive Format-Free File Management: This BlackVue-developed file system improves recording stability and requires less microSD card formatting.
SD Card Failure Alert: your BlackVue detects as soon as the microSD card fails and warns you with a “Please check SD card” voice alert.
High Capacity Memory Storage up to 256GB
Scheduled Reboots (see Parking Mode section below)

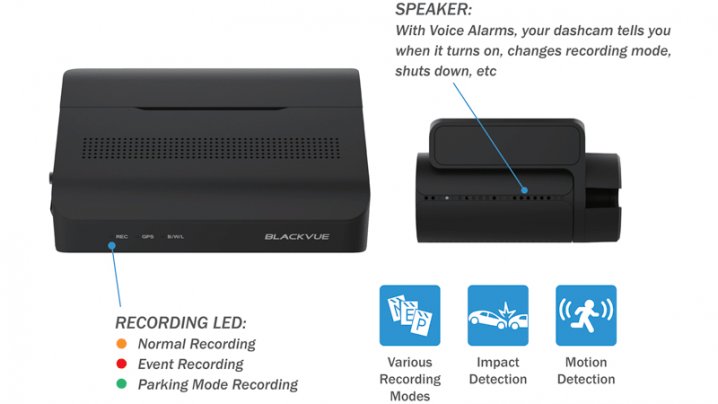

Built-in Speaker, Impact Sensor and Motion Detection
Speaker: your dashcam tells you when it turns on, shuts down or detects errors. Accelerometer: detects impacts to trigger Event recording. Triggers Parking Mode* when stationary for 5 minutes. Automatically tags video files: while driving, the built-in accelerometer (G-sensor) detects impacts and sudden changes in speed. While parked, your BlackVue also detects visual movements around your vehicles. Use the filters in the BlackVue App and Viewer: BlackVue tags all videos (Normal, Event, Parking Mode, etc.), so that you can filter them and quickly find the ones you need in the BlackVue Viewer (Windows, Mac OS, Web) or the BlackVue App (Android, iOS).
* For Parking Mode, the dashcam needs to be hardwired with power from your car battery or an optional Cellink Battery pack.
SOS Button
Easily and safely trigger Manual Event recording.
Install it in an easy-to-reach location.
Hold the button to pair it with Box unit (first-time use only).
Press the button to trigger Manual Event recording.
In the BlackVue App or Viewer, use the file type filters to quickly find Manual Event clips.

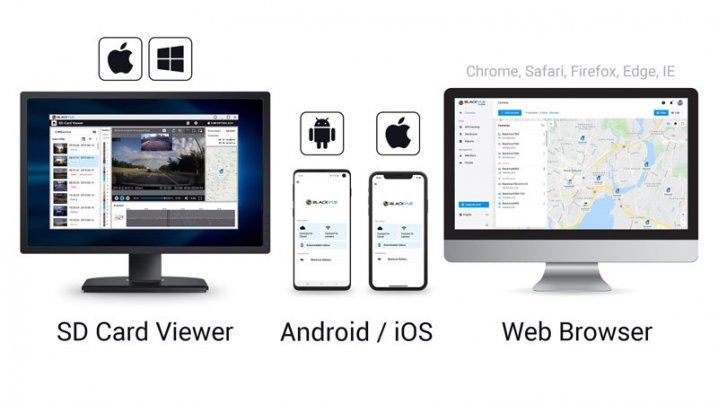

Intuitive BlackVue App and Viewer
EASILY MANAGE YOUR VIDEO FILES Easily change your BlackVue configuration settings and browse your videos on your mobile or computer.
With the BlackVue App, connect to your BlackVue to access files and check real-time Live View for easy setup of your dashcam.
With the SD Card Viewer, connect your dashcam’s microSD card to your computer to view and backup footage in bulk, as well as export clips, remove sound, etc.
The Web Viewer lets you manage your Cloud-connected dashcams from any web browser at blackvuecloud.com.

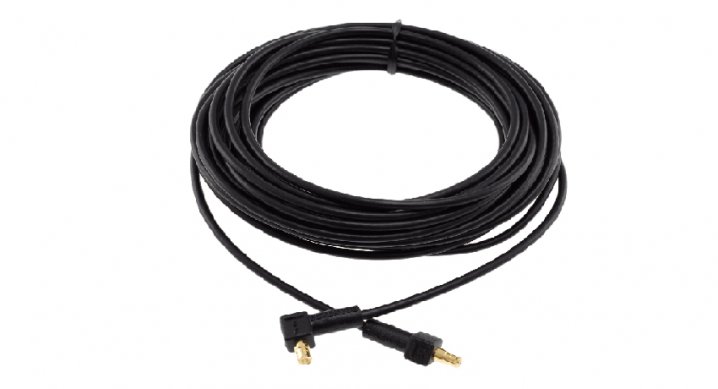

Reliable Coaxial Cable
Connects front and rear camera
Safer and faster data transmission comparing with USB or analog cable
Minimise noise for better image quality
Default cable length of 6 meters is sufficient for most cars, vans, SUVs and MPVs. Optional cable length of 10 or 15 meters is available upon request if needed.

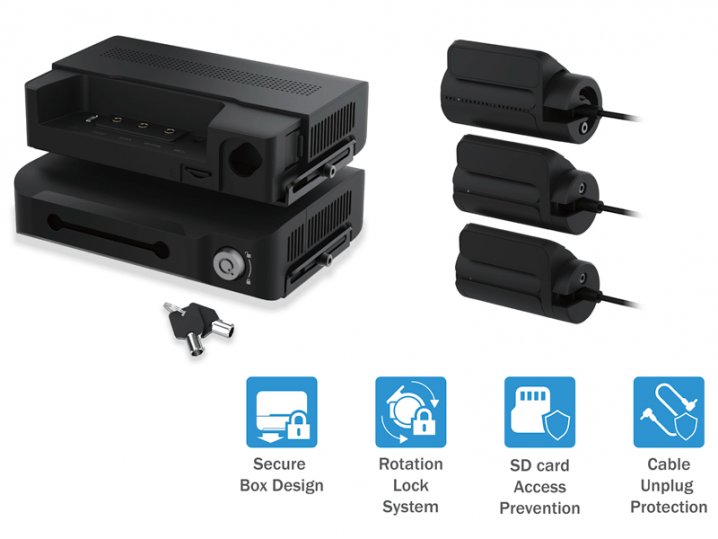

Built-in Tamper-Proofing
The DR770X Box is designed from the ground up to prevent tampering. Main unit: cover with lock and key to prevent access to the microSD card and the cable connectors. Cameras: covers with hex screw to prevent the unplugging of cables and lock the camera angle in the mount. Triple protection
Locks the dashcam’s angle via a hex screw to prevent rotation.
Blocks the access to the microSD card slot.
Protects against the unplugging of the power, video, and USB cables.

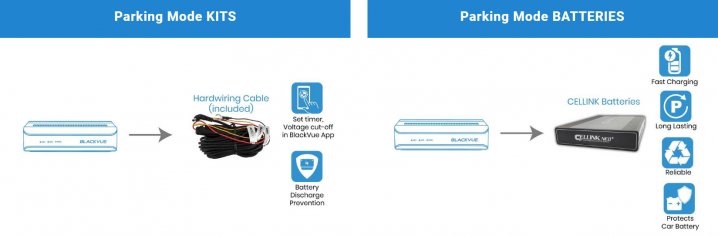

Native Parking Mode
Hardwiring cable included DR770X Box Series can be hardwired to your vehicle’s fuse panel for Parking Mode, without requiring optional accessories. The dashcam will switch to Parking Mode automatically when vehicle ignition is turned off. Voltage cutoff and timer can be set in the BlackVue App. Parking Mode accessories support DR770X Box Series is also compatible with all Parking Mode Kits and Batteries.
Disclaimer: Vehicle battery life and performance maybe affected which lead to premature failure especially with frequent short driving. Not compatible with some continental vehicles which may triggers dashboard error. Not recommended for most new vehicles under warranty due to agent restrictions.
Intelligent Parking Mode Monitoring
Peace of mind with extra security when you are away from your car With included hardwiring kit or optional Cellink batteries, you can rest easy, knowing that your car is being monitored while you are away. BlackVue automatically switches to Parking Mode to monitor your parked vehicle. Thanks to videobuffer, the few seconds leading to triggering events are also recorded. DR770X Box series supports two Parking Mode options:
Note: In Time Lapse mode, only the impact Event videos include buffering. In Motion & Impact Detection mode, both motion and impact videos include buffering. Learn more about Time Lapse and Motion & Impact Detection here >.
Motions recorded by the image sensor (marked “P” in the file list).
Impacts detected by the accelerometer/G-sensor (marked “E” in the file list).

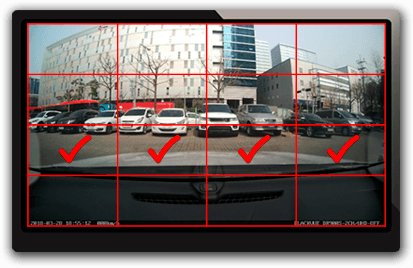

Choose detection regions to reduce the risk of triggering unwanted motion recordings due to trees swaying in the wind, far-away moving objects, etc.

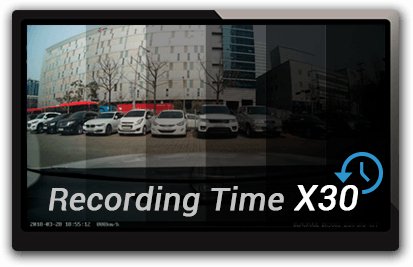

Continuously records at 1FPS (one frame per second). Videos are played back at 30FPS. 1-minute Time lapse Parking Mode video = 30 minutes real time coverage. Cover a period of more than 50 hours on a 32GB microSD card with front, rear and interior at the highest (Extreme) quality setting. When an impact is detected, the dashcam creates a buffered Event video.
And also:
Parking Mode Event Voice Notifications: Upon exiting Parking Mode, your BlackVue tells you if Events were recorded when you were away from your car, so you can check right away the Event videos on the BlackVue App.
Push Notification: If your dashcam is connected to the Cloud Service, you will receive instant push notification to your smartphone if there's an impact detected when you're away from your car.
Super stealthy: Completely turn off all LED indicators in Parking Mode. Only the recording LED indicator facing the interior of the vehicle will blink when motion or impact is detected.
Scheduled Reboot: Schedule a daily automatic reboot (optional—by default at night) to minimize potential errors. Reboots happen only if the dashcam is in Parking Mode and not writing data to the microSD card. This means no Normal driving, Event, or Parking Mode recording can be interrupted by a scheduled reboot.
Technical Specifications:
Model Name
DR770X BOX
Type
3 Channels (front, rear and inward-facing camera (interior))
Highlights
Full HD + Full HD + Full HD (Front + Rear + Interior), Cloud, Wi-Fi, Triple Sony Sensors, External GPS and LTE Module
Product Dimensions
Main unit : Black / Length 130.0 mm x Width 101.0 mm x Height 33.0 mm / 209 g Front : Black / Length 62.5 mm x Width 34.3 mm x Height 34.0 mm / 43 g Rear : Black / Length 63.5 mm x Width 32.0 mm x Height 32.0 mm / 33 g Interior IR : Black / Length 63.5 mm x Width 32.0 mm x Height 32.0 mm / 34 g Wireless Button : Black / Length 45.2 mm x Width 42.0 mm x Height 14.5 mm / 23 g
Rear Camera Connection
Coaxial cable
Memory support
MicroSD card up to 256GB
Recording Mode
• Normal recording, • Event recording (when impact is detected in normal and parking mode), • Manual recording • Parking recording (when motion is detected). * When using Hardwiring Power Cable, ACC+ will trigger parking mode. When using other methods, G-sensor will trigger parking mode.
Parking Mode
Yes (with 3-wire hardwiring cable included) using power from car battery or optional Cellink Battery is fully recommended.
Parking Mode Event Voice Notifications
Yes
Imaging Sensor
Front: Sony STARVIS™ CMOS Sensor (Approx. 2.1 M Pixel) Rear: Sony STARVIS™ CMOS Sensor (Approx. 2.1 M Pixel) Interior: Sony STARVIS™ CMOS Sensor (Approx. 2.1 M Pixel)
Main unit : Recording LED, GPS LED, BT/Wi-Fi/LTE LED Front cam : Front & Rear Security LED Interior IR cam : Front&Rear Security LED Emergency Button (EB-1) : Operating/Battery low voltage LED
Button
Emergency Button : Press the button – manual recording.
Operation Temperature
-20℃ – 80℃
Storage Temperature
-20℃ – 80℃
High Temp Cut Off
Approx. 80℃
Backup Battery
Built-in supercapacitor
Input Power
DC 12V – 24V
Power Consumption Hour
8.7W (Normal Mode) 7.3W (Parking Mode) * Actual power consumption may vary depending on use conditions and environment.
Certifications
Front (with Main unit & EB-1) : FCC, IC, CE, UKCA, RCM, Telec, WEEE, RoHS Rear,Rear Truck & Interior IR : KC, FCC, IC, CE, UKCA, RCM, WEEE, RoHS
Software
BlackVue Viewer: * Windows 7 or higher, Mac Sierra OS X (10.12) or higher BlackVue Web Viewer: * Chrome 71 or higher, Safari 13.0 or higher
Application
BlackVue Application (Android 4.4.2 or higher, iOS 9.0 or higher)
Bluetooth
Built-in (V2.1+EDR/4.2)
LTE
External using Connectivity Module CM100LTE (optional)
18-month warranty applies to all BlackVue dashcams and Cellink batteries with product online registration. The default memory card that comes with the dashcam is covered by a 6-month warranty. Terms and conditions apply.
